Product Details

Description



Features:

· Pulse width modulation up to 2 kHz clock frequency
· Protection against short circuit, load dump overvoltage and reverse VS
· Duty cycle 0 to 100%
· Output stage for power MOSFET
· Interference and damage protection according to VDE 0839 and ISO/TR 7637/1.
· Ground wire breakage protection
· Charge pump noise suppressed

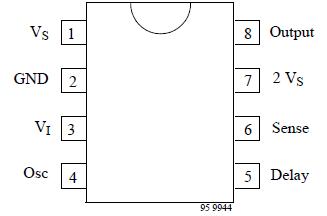

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Ambient temperature range
Tamb
-40to+110
Storage temperature range
Tstg
-55to+125
Junction temperature
Tj
150



Description

U6081B is a PWM IC in bipolar technology for the control of an N-channel power MOSFET used as a high side switch. The IC is ideal for the use in the brightness control (dimming) of lamps e.g., in dashboard applications.
