U6224B

Features:

1.3 GHz divide-by-8 prescaler integrated (can be bridged)
Easy-link interface to MOSMIC and MIXER-IC
Universal bus: I²C-bus or 3-wire-bus
3-wire-bus mode:
  3 unidirectional output ports (open collector) lock output (open collector)
I²C-bus mode:
  3 bidirectional ports (open collector)
  5 level ADC or unidirectional port (open collector)
  3 addresses selectable at Pin 10 and
  1 address fixed for multituner application
Low-power consumption (typ. 5 V / 35 mA)
Electrostatic protection according to MIL-STD 883
SO16 small package

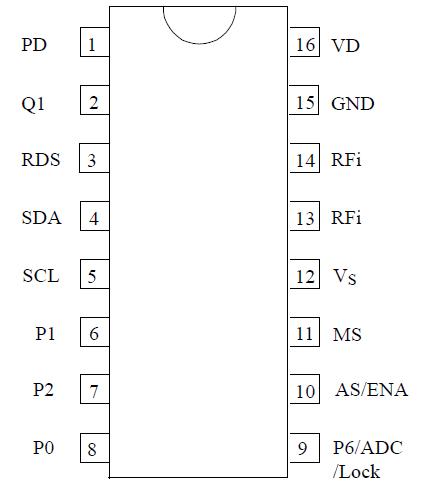

Pinout




Specifications

Parameters	Test Conditions / Pins	Symbol	Min.	Typ.	Max.	Unit
Supply voltage	Pin 12	Vs	0.3		6	V
RF input voltage	Pin 13, 14	RFi	0.3		Vs+0.3	V
Xtal input voltage	Pin 2	Q1	0.3		Vs+0.3	V
Charge pump output voltage	Pin 1	PD	0.3		Vs+0.3	V
Active filter output voltage	Pin 16	VD	0.3		Vs+0.3	V
Bus input/output voltage	Pin 4, 5	VSDA, VSCL	0.3		6	V
SDA output current	open collector Pin 4	ISDA	1		5	mA
Address select/ENA input	Pin 10	VAS/ENA	0.3		Vs+0.3	V
Port output current	open collector Pin 6-9	P0-2, P6	1		15	mA
Total port output current	open collector Pin 6-9	P0-2, P6	1		50	mA
Port input/output voltage	in off-state Pin 6-9	P0-2, P6	0.3		15	V
Port output voltage	in on-state Pin 6-9	P0-2, P6	0.3		6	V
Junction temperature		Tjmax	40		125
Storage temperature		Tstg	40		125

Description

The U6224B is a single chip frequency synthesizer with bi-directional I²C-bus control and an unidirectional 3-wire bus control, developed for TV-tuner applications. U6224B contains an integrated preamplifier, a high frequency prescaler, a reference divider with programmable divider ratios, a crystal oscillator, a phase/ frequency detector together with a charge pump and a tuning amplifier. It perform also a EASY LINK interface to MOSMIC and Mixer IC.
