U690B

Features: ` Time controlled interval/ wipe-wash` Wiper arm's park position control` Interval pause typ. 7 s` Dry wiping time typ. 4.4 s` Multipurpose frequency comparator` Relay driver with Z-diode` RC-oscillator determines switching characteristics` Debounced main signal input` Power-on reset by ...

product image

U690B Picture
See larger image
SeekIC No. : 004535072 Detail

U690B: Features: ` Time controlled interval/ wipe-wash` Wiper arm's park position control` Interval pause typ. 7 s` Dry wiping time typ. 4.4 s` Multipurpose frequency comparator` Relay driver with Z-diode`...

U690B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U690B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Time controlled interval/ wipe-wash
` Wiper arm's park position control
` Interval pause typ. 7 s
` Dry wiping time typ. 4.4 s
` Multipurpose frequency comparator
` Relay driver with Z-diode
` RC-oscillator determines switching characteristics
` Debounced main signal input
` Power-on reset by low-voltage identification
` Protection according to ISO / TR 76371 (VDE 0839)
` Load-dump protection


Application

Speed or R.P.M. detection

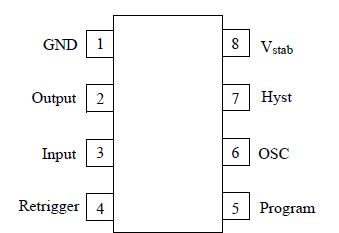

Pinout

Connection Diagram


Specifications

Reference point Pin 1 ( 31), unless otherwise specified
Parameters
Symbol
Value
Unit
Operating voltage, static 5 min., Terminal 15
VBatt
24
V
Junction temperature
Tj
150
Ambient temperature range
Tamb
-40to+95
Storage temperature range
Tstg
-55to+125



Description

The bipolar integrated circuit, U690B, is designed with a time coded input for the rear pane wiper application. The length of the input signal U690B determines the mode of operation i.e., intermittent or wipe/ wash; therefore, only one signal line is sufficient from the input switch to the electronic module.
