Features:

` Interval input: low side
` Wipe/ wash input: low side
` Park input: high side (park position)
` Output driver protected against short circuit
` All time periods determined by RC oscillator
` Fixed relay activation time of 500 ms
` Adjustable interval pause from 3 s to 11 s
` Fixed pre-wash delay of 400 ms
` Dry wiping
With park switch signal: 3 cycles
Without park switch signal: 2.8 s
` Inputs INT, WASH and PARK digitally debounced
` All inputs with integrated RF protection
` Load-dump protection and interference protection according to ISO 7637-1/3 (DIN 40839)

Application

Digital/ wipe-wash control for rear or front wiper

Pinout

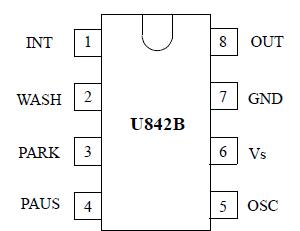

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Supply voltage t = 60 s t =600 s	V_Batt V_Batt	24 18	V V
Ambient temperature rang	T_amb	-30to+100
Storage temperature rang	T_stg	-40to+100
max.junction temperature	T_j	150

Description

The U842B circuit is designed as an interval and wipe/ wash timer for automotive wiper control. The interval pause can be set in a range from 3 s to 11 s by an external 1-k potentiometer. Wipe/wash mode has priority over the interval mode. The U842B controls the wiper motor with/without park switch signal.

The integrated relay driver U842B is protected against short circuits and is switched to conductive condition in the case of a load-dump. With only a few external components, protection against RF interference and transients (ISO/TR 7637-1/3) can be achieved.
