UAC3552A

Features: single-chip, USB specification 1.0/1.1 compliant,stereo audio D/A converter 12-Mbit/s USB transceiver adaptive isochronous endpoint for USB Audio USB-programmable vendor IDs (1024-bit EEPROM on chip) four general purpose input pins and four output pins (human interface pins) customizabl...

product image

UAC3552A Picture
See larger image
SeekIC No. : 004535226 Detail

UAC3552A: Features: single-chip, USB specification 1.0/1.1 compliant,stereo audio D/A converter 12-Mbit/s USB transceiver adaptive isochronous endpoint for USB Audio USB-programmable vendor IDs (1024-bit EEP...

UAC3552A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UAC3552A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

single-chip, USB specification 1.0/1.1 compliant,stereo audio D/A converter
12-Mbit/s USB transceiver
adaptive isochronous endpoint for USB Audio
USB-programmable vendor IDs (1024-bit EEPROM on chip)
four general purpose input pins and four output pins (human interface pins)
customizable I/O functionality by download-software
supports 16-bit mono/stereo and 24-bit stereo audio data
adaptive sample rate converter for 5 to 50 kHz input sampling rate
audio baseband control: bass, treble, volume, and balance, additional analog volume, mute
bass boost
automatic gain control (AGC)
"PerfectSpeaker" digital speaker equalizer
THD better than 0.01 %, SNR of 96 dB
integrated low-power stereo headphone amplifier
on-chip op amps for external analog filter
analog stereo input (AUX) with source selection and mixing
single 5-V power supply


Application

Recommended Low-Pass Filters for Analog Outputs
Typical Application


Pinout

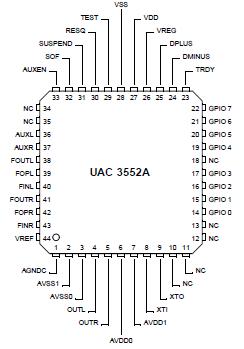

Connection Diagram


Specifications

Symbol
Parameter
Pin
Name
Min.
Max.
Unit
TA
 Ambient Operating Temperature
0
70
TS
 Storage Temperature
-40
125
PPmax
 Power Dissipation
-
900
mW
VSUPA
 Analog Supply Voltage1) AVDD0/1
-0.3
6
V
VSUPD
 Digital Supply Voltage
-0.3
6
V
VIdig
 Input Voltage, all digital inputs
-5
VSUPD + 0.3
V
IIdig
 Input Current, all digital inputs
-8
+0.5
mA
IIdig
 Input Current, all digital outputs
-14.8
8
mA
IOdig
 Output Current, all digital outputs
-0.3
14.8
mA
VIana
 Input Voltage, all analog inputs
-5
VSUPA + 0.3
V
IIana
 Input Current, all analog inputs
-
-5
mA
IOaudio
 Output Current, audio output2) OUTL/R
0.2
A
1) Both have to be connected together!
2) These pins are NOT short-circuit proof!
