UC1706

Features: · Dual, 1.5A Totem Pole Outputs· 40nsec Rise and Fall into 1000pF· Parallel or Push-Pull Operation· Single-Ended to Push-Pull Conversion· High-Speed, Power MOSFET ompatible· Low Cross-Conduction Current Spike· Analog, Latched Shutdown· Internal Deadband Inhibit Circuit· Low Quiescent Cur...

product image

UC1706 Picture
See larger image
SeekIC No. : 004535330 Detail

UC1706: Features: · Dual, 1.5A Totem Pole Outputs· 40nsec Rise and Fall into 1000pF· Parallel or Push-Pull Operation· Single-Ended to Push-Pull Conversion· High-Speed, Power MOSFET ompatible· Low Cross-Cond...

UC1706 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UC1706
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Dual, 1.5A Totem Pole Outputs
· 40nsec Rise and Fall into 1000pF
· Parallel or Push-Pull Operation
· Single-Ended to Push-Pull Conversion
· High-Speed, Power MOSFET ompatible
· Low Cross-Conduction Current Spike
· Analog, Latched Shutdown
· Internal Deadband Inhibit Circuit
· Low Quiescent Current
· 5 to 40V Operation
· Thermal Shutdown Protection
· 16-Pin Dual-In-Line Package
· 20-Pin Surface Mount Package


Pinout

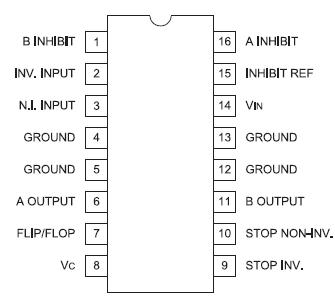

Connection Diagram


Specifications

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N--Pkg . . . . . . . . . . . . . . . . J--Pkg
Supply Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . 40V. . . . . . . . . . . . . . . . . 40V
Collector Supply Voltage, VC . . . . . . . . . . . . . . . . . . 40V. . . . . . . . . . . . . . . . . 40V
Output Current (Each Output, Source or Sink)
Steady--State. . . . . . . . . . . . . . . . . . . . . . . . . . ±500mA . . . . . . . . . . .  . ±500mA
Peak Transient. . . . . . . . . . . . . . . . . . . . . . . . . .  .±1.5A . . . . . . . . . . . . . .. ±1.0A
Capacitive Discharge Energy . . . . . . . . . . . . . . . . . 20J. . . . . . . . . . . . . . .  . 15J
Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5V . . . . . . . . . . . . . . . .  5.5V
Analog Stop Inputs . . . . . . . . . . . . . . . . . . . . . . . . . VIN. . . . . . . . . . . . . . . . . . VIN
Power Dissipation at TA = 25°C (See Note) . . . . . . .2W . . . . . . . . . . . . . . . . . 1W
Power Dissipation at T (Leads/Case) = 25°C . . . . .  5W. . . . . . . . . . . . . . . . . .  2
(See Note)
Operating Temperature Range . . . .  --55°C to +125°C
Storage Temperature Range. . . . . . .--65°C to +150°C
Lead Temperature (Soldering, 10 Seconds) . . . . 300°C

Note: All voltages are with respect to the four ground pins which must be connected ogether. All currents are positive into, negative out of the specified trerminal. Consult ackaging sections of the Databook for thermal limitations and considerations of package.


Description

The UC1706 family of output drivers are made with a high-speed chottky process to interface between low-level control functions and igh-power switching devices - particularly power MOSFET's. These devices mplement three generalized functions as outlined below.

First: They accept a single-ended, low-current digital input of either polarity nd process it to activate a pair of high-current, totem pole outputs hich can source or sink up to 1.5A each.

Second: They provide an optional single-ended to push-pull conversion hrough the use of an internal flip-flop driven by double-pulsesuppression ogic. With the flip-flop disabled, the outputs work in parallel or 3.0A capability.

Third: Protection functions are also included for pulse-by-pulse current imiting, automatic deadband control, and thermal shutdown. ese devices are available in a two-watt plastic "bat-wing" DIP for operation ver a 0°C to 70°C temperature range and, with reduced power, n a hermetically sealed cerdip for -55°C to +125°C operation. Also available n surface mount Q and L packages.
