UC5172

Features: · Eight Single-Ended Line Drivers in One Package· Meets Standards EIA232E/CCITT V.28, and EIA423A/CCITT V.10/X.26· Single External Resistor Controls Slew Rate· Wide Supply Voltage Range· Tri-State Outputs· Output Short-Circuit Protection· Low Power Consumption· 2kV ESD Protection on all ...

product image

UC5172 Picture
See larger image
SeekIC No. : 004535688 Detail

UC5172: Features: · Eight Single-Ended Line Drivers in One Package· Meets Standards EIA232E/CCITT V.28, and EIA423A/CCITT V.10/X.26· Single External Resistor Controls Slew Rate· Wide Supply Voltage Range· T...

UC5172 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UC5172
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Eight Single-Ended Line Drivers in One Package
· Meets Standards EIA232E/CCITT V.28, and EIA423A/CCITT V.10/X.26
· Single External Resistor Controls Slew Rate
· Wide Supply Voltage Range
· Tri-State Outputs
· Output Short-Circuit Protection
· Low Power Consumption
· 2kV ESD Protection on all Pins
· EOS on all Output Pins 35V under all Output Conditions
· High Current Output for Long Line Drive, Exceeds Standards


Pinout

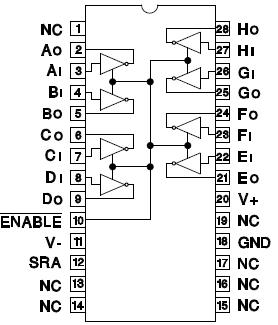

Connection Diagram


Specifications

V+ (Pin 20) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  15V
V- (Pin 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -15V
PLCC Power Dissipation, TA=25°C (Note 3) . . . . . . . . . . . . . . . . . . . 1000 mW
DIP Power Dissipation, TA=25°C (Note 3) . . . . . . . . . . . . . . . . . . . .  1250 mW
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -1.5V to +7V
Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . -6V to +6V
Slew Rate Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2k to 10kW
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C

Note 1: All voltages are with respect to ground, pin 18.
Note 3: Consult Packaging section of Databook for thermal limitations and considerations of package.


Description

The UC5172 is a single-ended octal line driver designed to meet both standard modem control applications (EIA232E/V.28), and long line drive applications (EIA423A/V.10/X.26). The slew rate for all 8 drivers is controlled by a single external resistor. The slew rate and output levels are independent of the power variations.

The UC5172 has high output current, and current balance for long line drive applications. EOS - Output parasitic SCRs powered on and off  are 35V, well above signal levels, allowing protection devices to work.

UC5172 Inputs are compatible TTL+MOS logic families and are diode protected against negative transients.
