UC5181C

Features: ` Meets EIA232E/423A/422A and CCITT V.10, V.11, V.28, X.26, X.27` Single +5V Supply-TTL Compatible Outputs` Differential Inputs withstand ±25V` Low Open Circuit Voltage for Improved Failsafe Characteristic` Reduced Supply Current-35mA Max` Internal HysteresisPinoutSpecificationsSupply Vo...

product image

UC5181C Picture
See larger image
SeekIC No. : 004535691 Detail

UC5181C: Features: ` Meets EIA232E/423A/422A and CCITT V.10, V.11, V.28, X.26, X.27` Single +5V Supply-TTL Compatible Outputs` Differential Inputs withstand ±25V` Low Open Circuit Voltage for Improved Failsa...

UC5181C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UC5181C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Meets EIA232E/423A/422A and CCITT V.10, V.11, V.28, X.26, X.27
` Single +5V Supply-TTL Compatible Outputs
` Differential Inputs withstand ±25V
` Low Open Circuit Voltage for Improved Failsafe Characteristic
` Reduced Supply Current-35mA Max
` Internal Hysteresis


Pinout

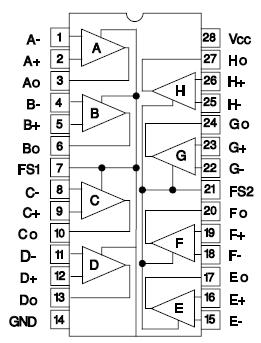

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Output Sink Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50mA
Output Short Circuit Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Sec
Common Mode Input Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
Differential Input Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 25V
Failsafe Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -0.3 to VCC
PLCC Power Dissipation, TA=25° C (Note 2) . . . . . . . . . . . . . . . . . . . 1000 mW
DIP Power Dissipation, TA=25° C (Note 2) . . . . . . . . . . . . . . . . . . . .  1200 mW
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . .  -65° C to +150° C
Lead Temperature (Soldering, 10 seconds) . . . . . . . . . . . . . . . . . . . . . -300° C

Note 1: All voltages are with respect to ground, pin 14. Currents are positive in, negative out of the specified terminal.
Note 2: Consult packaging section of Databook for thermal limitations and considerations of package.


Description

The UC5181C is an octal line receiver designed to meet a wide range of digital communications requirements as outlined in EIA standards EIA232E, EIA422A, EIA423A and CCITT V.10, V.11, V.28, X.26, and X.27. The UC5181C is similar to the UC5180C, but without the input filtering. Thus, it covers the entire range of data rates up to 10MBPS. A failsafe function allows these devices to "fail" to a known state under a wide variety of fault conditions at the inputs.
