Product Details

Description



Features:

• Vcc operation voltage : 3.0 V~ 3.6V
• Low power consumption : 20mA (Max.) operating current 2uA (Typ.) CMOS standby current
• High Speed Access time : 25ns (Max.) at Vcc = 3.0V
• Automatic power down when chip is deselected
• Three state outputs and TTL compatible
• Data retention supply voltage as low as 1.2V
• Easy expansion with CE\ and OE\ options

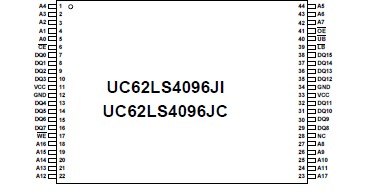

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNIT
VTERM Terminal Voltage with
Respect to GND		 -0.5 to VCC+0.5 V
TBIAS Temperature Under Bias -40 to 125
TSTG Storage Temperature -50 to 150
PT Power Dissipation 0.5 W
IOUT DC Output Current 10 mA

1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The UC62LS4096 is a high performance, low power CMOS Static Random Access Memory organized as 262,144 words by 16 and operates from 3.0V to 3.6V supply voltage. Advanced CMOS technology and circuit techniques provide both high speed and low power features with a typical CMOS standby current of 2uA and maximum access time of 25ns in 3.0V operation.

Easy memory expansion is provided enable (CE\), and active LOW output enable (OE\) and three-state output drivers.The UC62LS4096 has an automatic power down feature, reducing the power consumption significantly when chip is deselected.

The UC62LS4096 is available in the JEDEC standard 44 pin TSOP (Type II) and 48 pin mini-BGA.
