UCB1510

Features: · Sigma delta telecom codec with programmable sample rate, including digitally controlled input voltage level, mute, loop back and clip detection functions. The telecom codec can be directly connected to a Data Access Arrangement (DAA) and includes a built in sidetone suppression circuit...

product image

UCB1510 Picture
See larger image
SeekIC No. : 004535746 Detail

UCB1510: Features: · Sigma delta telecom codec with programmable sample rate, including digitally controlled input voltage level, mute, loop back and clip detection functions. The telecom codec can be direct...

UCB1510 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UCB1510
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Sigma delta telecom codec with programmable sample rate, including digitally controlled input voltage level, mute, loop back and clip detection functions. The telecom codec can be directly connected to a Data Access Arrangement (DAA) and includes a built in sidetone suppression circuit
· AClink (rev 2.1) interface with secondary codec support
· 3.3 V supply voltage and built in power saving modes make the UCB1510 optimal for portable and battery powered applications
· 5 V tolerant interface for motherboard/PC add on
· Maximum operating current 25 mA
· 8 general purpose IO pins for line interface control
· Interrupt detection driven wake up sequence for ring detect
· Low cost 12.288 MHz crystal


Application

· Standalone modems
· Integrated modems
· Audio/Modem Riser (AMR) Cards
· Mobile Daughter Cards (MDC)


Pinout

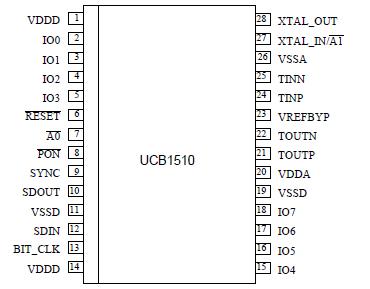

Connection Diagram


Specifications

Symbol Parameter Conditions
Min
Max
0Unit
VDD supply voltage
-0.5
+4.0
V
Vi DC input voltage
-0.5
VDD + 0.5
V
Vo DC output voltage
-
VDD + 0.5
V
Ii(d) diode input current
-
10
mA
Io(d) diode output current
-
10
mA
Io continuous output current,
digital outputs
-
4
mA
Tstg storage temperature
-55
+15

[1] Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the Absolute Maximum Rating section of this specification is not implied.
[2] Parameters are valid over the ambient operating temperature unless otherwise specified. All voltages are with respect to VSSD, unless otherwise noted.


Description

The UCB1510 is a single chip, integrated mixed signal telecom codec that can directly be connected to a DAA and supports high speed modem protocols. The general purpose I/O pins provide programmable inputs and/or outputs to the system.

The UCB1510 has a serial AClink interface intended to communicate to the system controller. Both the codec input data and codec output data and the control register data are multiplexed on this interface.
