Features:

· Micropower in the Sleep Mode, (2mA)
· 3V to 5V Operation
· Wide Dynamic Receiver Range from
  200nA to 50mA Typical
· Direct Interface to IrDA Compatible
  UARTs or Super I/O ICs
· Supports IrDA Standard to 115.2kbps Data Rates
· Transmitter Output Stage Capable to
  500mA Sink Current
· IrDA Compliant Modulation &
  Demodulation Scheme
· Direct Interface to Standard UART
· 16 Pin SSOP, SOIC and DIL Package


Pinout

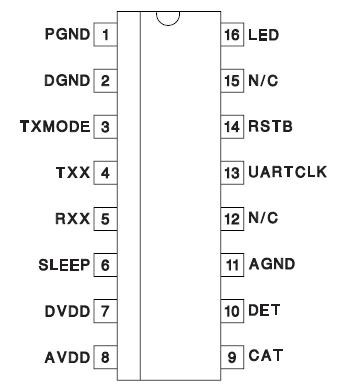

Connection Diagram


Specifications

AVDD, DVDD, CAT. . . . . . . . . . . . . . . . . . . . . . . . . . .0.3V to 7V
SLEEP, DET, TXX, LED,
DVDD, CAT. . . . . . . . . . . . . . . . . . . . . -0.3mA to AVDD + 0.3mA
IRXX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA to 10 mA
IDET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250mA
ILED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBA
Storage Temperature . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . . . . . . 55°C to +150°C
Lead Temperature (Soldering, 10sec.) . . . . . . . . . . . . . . +300°C
All voltages are positive with respect to AGND. DGND and
PGND must be connected to AGND. Currents are positive into,
negative out of the specified terminal. Consult Packaging Section
of the Databook for thermal limitations and considerations of
packages.


Description

The UCC5343 IrDA Transceiver with Encoder/Decoder supports the Physical Layer specifications of the IrDA standard. Additional functionality is provided by data format translation between standard UART and IrDA formats. The UCC5343 is readily interfaced to a standard UART.

The Receiver has a limiting transresistance amplifier to detect a current signal from a PIN diode and drives RXX pulses into a UART. The receiver is capable of detecting input currents ranging from 200nA to greater than 50mA. The receiver signal path is frequency limited by an internal bandpass filter to reduce interference from other sources of IR energy.

The output of the receiver is designed for direct interface to standard UARTs and Super I/O devices up to 115.2kbps. Internal resistors are provided for decoupling the pin diode supply, minimizing the number of required external components.

The UCC5343 has low current consumption in the active mode, making it excellent for applications with low power requirements. The transmitter section has a low impedance open drain MOSFET output. It is capable of sinking 300mA from an output LED at 3V and 500mA at LED at 5V.
