UCN5816EP

Features: · Addressable Data Entry· 60 V Minimum Output Breakdown· CMOS, PMOS, NMOS, TTL Compatible Inputs· Low-Power CMOS Logic and Latches· Output Transient Protection· Output Enable and Strobe FunctionsPinoutSpecificationsOutput Voltage, VCE . . . . . . . .. . . . 60 VLogic Supply Voltage, VDD ...

product image

UCN5816EP Picture
SeekIC No. : 004536205 Detail

UCN5816EP: Features: · Addressable Data Entry· 60 V Minimum Output Breakdown· CMOS, PMOS, NMOS, TTL Compatible Inputs· Low-Power CMOS Logic and Latches· Output Transient Protection· Output Enable and Strobe Fu...

floor Price/Ceiling Price

Part Number:
UCN5816EP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Addressable Data Entry
· 60 V Minimum Output Breakdown
· CMOS, PMOS, NMOS, TTL Compatible Inputs
· Low-Power CMOS Logic and Latches
· Output Transient Protection
· Output Enable and Strobe Functions



Pinout

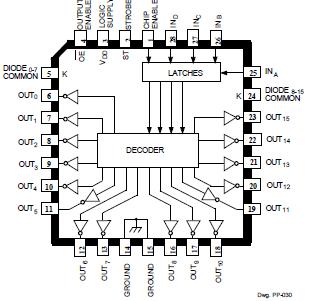

  Connection Diagram


Specifications

Output Voltage, VCE . . . . . . . .. . . . 60 V
Logic Supply Voltage, VDD . . . . . . . 15 V
Input Voltage Range,
VIN . . . . . . . . . . .. -0.3 V to VDD + 0.3 V
Output Current, IC . . . . . . . . . . 500 mA
Package Power Dissipation,
PD . . . . . . . . . . . . . . . . . . ... See Graph
Operating Temperature Range,
TA . . . . . . . . . . . . . . . -20°C to +85°C
Storage Temperature Range,
TS . . . . . . . . . . . . . . -55°C to +150°C

Caution: CMOS devices have input static protection but are susceptible to damage when exposed to extremely high static electrical charges.



Description

The UCN5816A and UCN5816EP 4-to-16 line latched decoder/ drivers combine low-power CMOS inputs and logic with 16 highcurrent, high-voltage bipolar outputs. The CMOS inputs cause minimal loading and are compatible with standard CMOS, PMOS, and NMOS logic. TTL or DTL circuits may require the use of appropriate pull-up resistors to ensure an input logic high. The logic operates over a supply range of 5 V to 12 V. A CHIP ENABLE function can be used with two devices for 5-to-32 line decoding applications.

The UCN5816A and UCN5816EP 16 bipolar power outputs are open-collector 60 V Darlington drivers capable of sinking 350 mA continuously. Internal transientsuppression diodes provide protection for use with inductive loads. For ink-jet printer applications, the A5817SEP addressable 28-line decoder/driver is recommended.

The UCN5816A is supplied in a 28-pin dual in-line plastic package with 0.600" (15.24 mm) row spacing. The UCN5816EP is furnished in a 28-lead plastic chip carrier (quad pack) for minimum-area surfacemount applications. Both devices will drive 350 mA loads continuously over the full operating temperature range.
