UDA1350AH

Features: 1.1 General` 2.7 to 3.6 V power supply` Integrated digital filter and Digital-to-Analog Converter (DAC)` Master-mode data output interface for off-chip sound processing` 256fs system clock output` 20-bit data-path in interpolator` High performance` No analog post filtering required for D...

product image

UDA1350AH Picture
See larger image
SeekIC No. : 004536252 Detail

UDA1350AH: Features: 1.1 General` 2.7 to 3.6 V power supply` Integrated digital filter and Digital-to-Analog Converter (DAC)` Master-mode data output interface for off-chip sound processing` 256fs system clock...

UDA1350AH Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UDA1350AH
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1.1 General
` 2.7 to 3.6 V power supply
` Integrated digital filter and Digital-to-Analog Converter (DAC)
` Master-mode data output interface for off-chip sound processing
` 256fs system clock output
` 20-bit data-path in interpolator
` High performance
` No analog post filtering required for DAC.
1.2 Control
` Controlled either by means of static pins or via the L3 microcontroller interface.
1.3 IEC 958 input
` On-chip amplifier for converting IEC 958 input to CMOS levels
` Selectable IEC 958 input channel, one out of two
` Lock indication signal available on pin LOCK
` Lock indication signal combined on-chip with the Pulse Code Modulation (PCM) status bit; in case non-PCM has been detected pin LOCK indicates out-of-lock
` Key channel-status bits available via L3 interface (lock, pre-emphasis, audio sample frequency, two channel PCM indication and clock accuracy).
1.4 Digital output and input interfaces
` When the UDA1350AH is clock master of the data output interface:
    BCKO and WSO signals are output
    I2S-bus or LSB-justified 16, 20 and 24 bits formats are supported.
` When the UDA1350AH is clock slave of the data input
    interface:
     BCK and WS signals are input
    I2S-bus or LSB-justified 16, 20 and 24 bits formats are supported.
1.5 Digital sound processing and DAC
` Pre-emphasis information of IEC 958 input bitstream available in L3 interface register and on pins
` Automatic de-emphasis when using IEC 958 input with 32.0, 44.1 and 48.0 kHz audio sample frequencies
` Soft mute by means of a cosine roll-off circuit selectable via pin MUTE or the L3 interface
` Interpolating filter (fs to 128fs) by means of a cascade of a recursive filter and a FIR filter
` Third-order noise shaper operating at 128fs generates bitstream for the DAC
` Filter stream digital-to-analog converter.


Application

· Digital audio systems.


Pinout

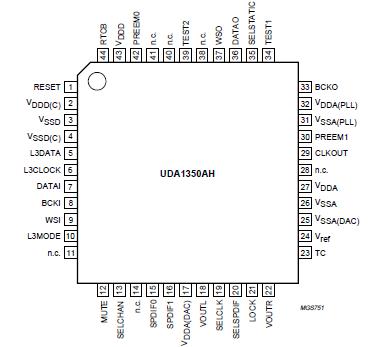

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX.
UNIT
VDD supply voltage note 1 2.7 5.0
V
Txtal crystal temperature -25 +150
Tstg storage temperature -65 +125
Tamb ambient temperature -40 +85
Vesd electrostatic discharge voltage Human Body Model (HBM); note 2 -2000 +2000
V
Machine Model (MM) -200 +200
V
Ilu(prot) latch-up protection current note 3 - 200
mA
Isc(DAC) short-circuit current of DAC note 4
output short-circuited to VSSA(DAC)
output short-circuited to VDDA(DAC)		 -
-		 482
346
mA
mA

1. All VDD and VSS connections must be made to the same power supply.
2. JEDEC class 2 compliant, except pin VSSA(PLL) which can withstand ESD pulses of -1600 to +1600 V.
3. Latch-up test at Tamb = 125 °C and VDD = 3.6 V.
4. Short-circuit test at Tamb = 0 °C and VDD = 3 V. DAC operation after short-circuiting cannot be warranted.
