Emitter- Base Voltage VEBO
:
Collector- Base Voltage VCBO
:
Maximum Collector Cut-off Current
:
Transistor Polarity
: NPN
Collector- Emitter Voltage VCEO Max
: 80 V
Mounting Style
: Through Hole
Packaging
: Tube
Maximum Operating Temperature
: + 85 C
Package / Case
: PDIP-16
Configuration
: Quad
Maximum DC Collector Current
: 1.75 A
Power Dissipation
: 4.3 W
Features: ·OUTPUT CURRENT TO 1.5 A EACH DARLINGTON
·MINIMUM BREAKDOWN 80 V
·SUSTAINING VOLTAGE AT LEAST 50 V
·INTEGRAL SUPPRESSION DIODES (ULN2065B, ULN2067B, ULN2069B and ULN2071B)
·ISOLATEDDARLINGTONPINOUT(ULN2075B and ULN2077B)

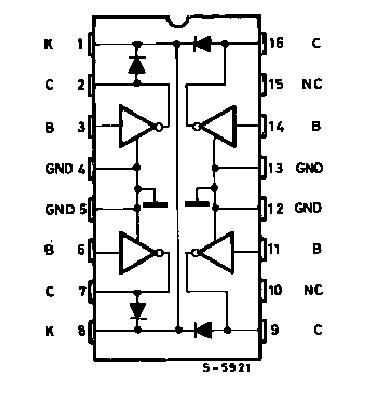

·VERSIONS COMPATIBLE WITH ALL POPULARLOGIC FAMILIESPinout
Specifications
|
Symbol |
Parameter |
Value |
Unit |
|
VCEX |
Output Voltage |
80 |
V |
|
VCE(sus) |
Output Sustaining Voltage |
50 |
V |
|
IO |
Output Current |
1.75 |
A |
|
Vi |
Input Voltage for ULN2075B 2077B
for ULN2067B 2071B
for ULN2065B 2069B |
60
30
15 |
V
V
V |
|
Ll |
Input Current |
25 |
mA |
|
Vs |
Supply Voltage for ULN2069B
for ULN2071B
|
10
20 10 |
V
V |
|
Ptot |
Power Dissipation at Tpins = 90 °C
at Tamb = 70 °C
|
4.3
1 |
W
W |
|
Tamb |
Operating Ambient Temperature Range |
20 to 85 |
°C |
|
Tstg |
Storage Temperature |
55 to 150 |
°C |
DescriptionDesigned to interface logic to a wide variety of high current, high voltageloads,thesedevices each contain four NPN darlington switches delivering up to 1.5 A with a specified minimum breakdown of 80 V and a sustaining voltage of 50 V. The ULN2065B, ULN2067B, ULN2069B and ULN2071B contain integral suppression diodes for inductive loads and have common emitters ; the ULN2075B and ULN2077B feature isolated darlington pinouts and are intended for applications such as emitter follower configurations. Inputs of the ULN2065B, ULN2069B and ULN2075B are mpatible with popular 5 V logic families and the ULN2067B, ULN2071B and ULN2077B are compatible with 6- 15 VCMOS and PMOS. The ULN2069B and ULN2071Binclude a predriver stage to provide extragain, reducing the load on control logic.
Parameters: | Technical/Catalog Information | ULN2065B |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Number of Drivers/Receivers | - |
| Type | Darlington Array |
| Voltage - Supply | 50V |
| Package / Case | 16-PowerDIP |
| Packaging | Tube |
| Protocol | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ULN2065B
ULN2065B
497 2349 5 ND
49723495ND
497-2349-5
|
