ULN2804A

Emitter- Base Voltage VEBO :
Collector- Base Voltage VCBO :
Maximum Collector Cut-off Current :
Power Dissipation :
Transistor Polarity : NPN
Collector- Emitter Voltage VCEO Max : 50 V
Mounting Style : Through Hole
Packaging : Tube
Maximum DC Collector Current : 0.5 A
Maximum Operating Temperature : + 85 C
Configuration : Octal
Package / Case : PDIP-18


Features:

·EIGHTDARLINGTONS WITHCOMMONEMITTERS
·OUTPUT CURRENT TO 500 mA .OUTPUT VOLTAGE TO50 V
·INTEGRAL SUPPRESSIONDIODES
·VERSIONS FOR ALL POPULARLOGIC FAMILIES
·OUTPUT CAN BE PARALLELED
·INPUTS PINNED OPPOSITE OUTPUTS TO
·SIMPLIFYBOARDLAYOUT

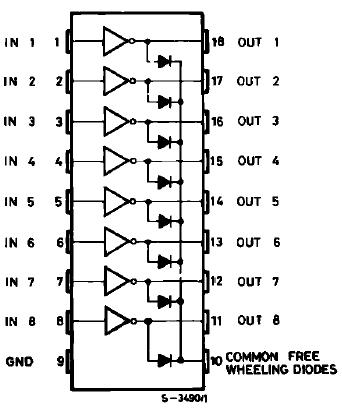

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vo	Output Voltage	50	V
Vi	Input Voltage      for ULN2802A, UL2803A, ULN2804A      for ULN2805A	30 15	V
IC	Continuous Collector Current	500	mA
IB	Continuous Base Current	25	mA
Ptot	Power Dissipation       (one Darlington pair)       (total package)	1.0 2.25	W
Tamb	Operating Ambient Temperature Range	-20 to 105
Tstg	Storage Temperature Range	-55 to 150
Tj	Junction Temperature Range	-20 to 150

Description

The ULN2801A-ULN2805Aeach contain eight darlington transistors with common emitters and integral suppression diodes for inductive loads. Each darlington features a peak load current rating of 600mA (500mA continuous) and can withstand at least50V in the off state. Outputsmaybe paralleled for higher current capability.

Five versions are available to simplify interfacing to standard logic families : the ULN2801Ais designed for  eneralpurpose applicationswith a current limit resistor ; theULN2802Ahas a 10.5kW inputresistor and zenerfor 14-25VPMOS; theULN2803Ahas a 2.7kW input resistor for 5V TTL and CMOS ; the ULN2804A has a 10.5kW input resistor for 6-15V CMOS and the ULN2805A is designed to sink a minimum of 350mA for standard and Schottky TTL
where higher output current is required.

All types are supplied in a 18-lead plastic DIP with a copperleadfromandfeaturethe convenientinputopposite- outputpinout to simplify board layout.

Parameters:

Technical/Catalog Information	ULN2804A
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	-
Type	Darlington Array
Voltage - Supply	-
Package / Case	18-DIP (300 mil)
Packaging	Tube
Protocol	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ULN2804A ULN2804A 497 2357 5 ND 49723575ND 497-2357-5
