Part Number: UPC2539_1261333









Description: The mPC2539 is data demodulator IC for FM receiver applying to Radio Data System in European countries...


Urgent Purchase

UPC2539_1261333 General Description


The mPC2539 is data demodulator IC for FM receiver applying to Radio Data System in European countries and adio Broadcasting Data System in USA.

This IC carries out to extract 57kHz RDS signal from FM multiplex signal, demodulate data-stream, recover it-rate-clock, and discriminate SK signal in ARI system.

UPC2539_1261333 Maximum Ratings

PARAMETER
SYMBOL
Conditions
RATINGS
UNIT
Supply voltage
VCC
VCC pin, VDD pin
7.0
V
Powerdissipation
Pd
 TA=85°C
280
mW
Operating ambient temperature
Topt
30 to +85
°C
Storage temperature
Tstg

40 to +125
°C

UPC2539_1261333 Features

• Adjustment-free
• Built-in 57kHz band-pass-filter consist of switched capactiors.
• High sensitivity.
• Employing digital PLL.
• Small outline plastic package

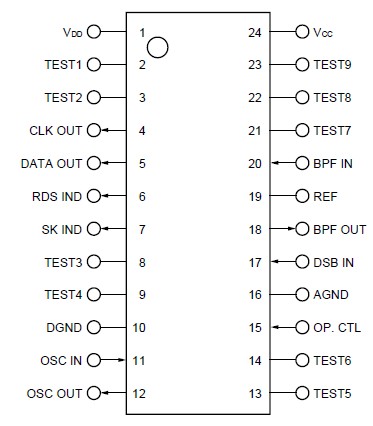

UPC2539_1261333 Connection Diagram

UPC2539_1261333 Connection Diagram
