Part Number: UPC2782GR
Description: The UPC2782GR is a Silicon Monolithic Microwave Integrated Circuit manufactured using the NESAT III pr...
- Table of contents:
UPC2782GR
-
Suppliers
DataSheet
General Description
UPC2782GR General Description
The UPC2782GR is a Silicon Monolithic Microwave Integrated Circuit manufactured using the NESAT III process. This process produces transistors with fT of 20 GHz. This device consists of a Gilbert cell mixer, two stages of LO buffering, local oscillator, external filter port, a high output variable gain IF amp, and a temperature compensation circuit. The device was specifically designed for digital satellite receivers, WLAN's, and other digital receiver applications.
NEC's stringent quality assurance and test procedures assure the highest reliability and performance.
UPC2782GR Maximum Ratings
|
SYMBOLS |
PARAMETERS |
UNITS |
RATINGS |
|
VCC |
Supply Voltage |
V |
6.0 |
|
PD |
Power Dissipation2 |
mW |
430 |
|
TOP |
Operating Temperature |
-40 to +85 | |
|
TSTG |
Storage Temperature |
-55 to +150 |
1. Operation in excess of any one of these parameters may result in permanent
damage.
2. Mounted on a 50 x 50 x 1.6 mm epoxy glass PWB (TA = +85).
UPC2782GR Features
• WIDEBAND OPERATION: 900 - 2100 MHz
• HIGH DYNAMIC RANGE: +4.5 dBm IIP3
• HIGH LO-RF ISOLATION: -40 dBm Leakage
• VARIABLE GAIN IF AMP: 25 dB Control Range
• INTERNAL LO
• SMALL 20 PIN SSOP PACKAGE
• TAPE AND REEL PACKAGING OPTION AVAILABLE
• HIGH DYNAMIC RANGE: +4.5 dBm IIP3
• HIGH LO-RF ISOLATION: -40 dBm Leakage
• VARIABLE GAIN IF AMP: 25 dB Control Range
• INTERNAL LO
• SMALL 20 PIN SSOP PACKAGE
• TAPE AND REEL PACKAGING OPTION AVAILABLE

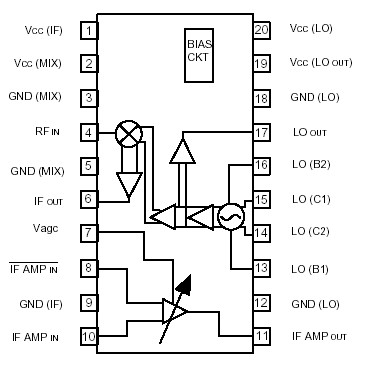

UPC2782GR Connection Diagram
