General Description
UPC2794GS General Description
The UPC2794GS is a Silicon monolithic IC designed for TV/VCR tuner applications. This IC consists of a double balanced mixer (DBM), local oscillator, preamplifier for precscaler operation, IF amplifier, regulator, UHF/VHF switching circuit, and so on. This one-chip IC covers a wide frequency band from VHF to UHF bands. This IC is packaged in 20-pin SOP (Small Outline Package) suitable for surface mounting
UPC2794GS Maximum Ratings
|
Parameter |
Symbol |
Ratings |
Unit |
| Supply Voltage 1 |
Vcc |
11.0 |
V |
| Supply Voltage 2 |
UB |
11.0 |
V |
| Power dissipation |
PD |
700 |
mW |
| Operating ambient temperature |
TA |
-40to+80 |
|
| Storage temperature |
Tstg |
-60to+150 |
UPC2794GS Features
• VHF to UHF bands operation.
• Low distortion CM: VHF (@fRF = 470 MHz) 96 dB
UHF (@fRF = 890 MHz) 92 dB
• Supply voltage : 9 V
• Packaged in 20-pin SOP suitable for surface mounting
• Low distortion CM: VHF (@fRF = 470 MHz) 96 dB
UHF (@fRF = 890 MHz) 92 dB
• Supply voltage : 9 V
• Packaged in 20-pin SOP suitable for surface mounting

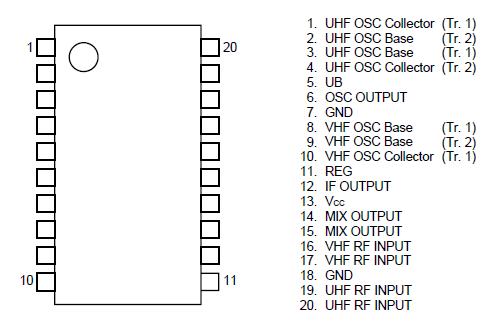

UPC2794GS Connection Diagram
UPC2794GS
