UPC2798GR General Description


NEC's UPC2798GR is a Silicon MMIC Downconverter manufactured with the NESAT™III silicon bipolar process. This product consists of an input AGC amplifier, mixer, local oscillator, and video amplifier. It is housed in a small 20 pin SSOP package. The device is designed for use as an IF downconverter for digital CATV settops and cable modems utilizing QAM modulation.

NEC's stringent quality assurance and test procedures ensure the highest reliability and performance.

UPC2798GR Maximum Ratings

SYMBOLS PARAMETERS UNITS RATINGS
VCC1 Supply Voltage 1
(Mixer Block)		 V 6.0
VCC2 Supply Voltage 2
(Video Amp Block)		 V 6.0
PD Power Dissipation,
TA = 85°C2		 mW 430
TOP Operating Temperature °C -40 to +85
TSTG Storage Temperature °C -55 to +150

UPC2798GR Features

• RF/LO FREQUENCY RANGE: 30-250 MHz
• ON CHIP VCO
• LOW DISTORTION AGC AMPLIFIER:
-9 dBm IIP3 @ MIN Gain
• ON CHIP VIDEO AMP: 3.0 Vp-p (VCC = 5 V)
• SMALL 20 PIN SSOP PACKAGE
• AVAILABLE ON TAPE AND REEL

UPC2798GR datasheet

UPC2798GR
PDF/DataSheet Download

Find UPC2798GR Suppliers

  • ·UPC1028H
  • nec
  • Analog IC
  • 576711 KB
  • UPC1028H Datasheet Download
  • ·UPC1042
  • NEC [NEC]
  • SWITCHING REGULATOR CONTROL CIRCUIT
  • 255177 KB
  • UPC1042 Datasheet Download
  • ·UPC1060
  • NEC [NEC]
  • 2.5 V HIGH PRECISION REFERENCE VOLTAGE CIRCUIT
  • 54686 KB
  • UPC1060 Datasheet Download
  • ·UPC1060C
  • NEC [NEC]
  • 2.5 V HIGH PRECISION REFERENCE VOLTAGE CIRCUIT
  • 54686 KB
  • UPC1060C Datasheet Download
  • ·UPC1093
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093 Datasheet Download
  • ·UPC1093G
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093G Datasheet Download
  • ·UPC1093J
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093J Datasheet Download
  • ·UPC1093T
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093T Datasheet Download

Related Part Number

UPC2798GR Relative Products

  • UPC2795GV-E1_1264718

    UPC2795GV-E1_1264718

    The mPC2795GV is Silicon monolithic IC designed for L-band down converter. This IC consists of double alanced mixer, local oscillator, local oscillation buffer amplifier, IF buffer amplifier, and voltage regulator.The package is 8-pin SSOP suitable for high-...

  • UPC2794GS

    UPC2794GS

    The UPC2794GS is a Silicon monolithic IC designed for TV/VCR tuner applications. This IC consists of a double balanced mixer (DBM), local oscillator, preamplifier for precscaler operation, IF amplifier, regulator, UHF/VHF switching circuit, and so on. This o...

  • UPC2792TB-E3

    UPC2792TB-E3

    MMIC AMP 5V 1.2GHZ SOT363

  • UPC2782GR

    UPC2782GR

    The UPC2782GR is a Silicon Monolithic Microwave Integrated Circuit manufactured using the NESAT III process. This process produces transistors with fT of 20 GHz. This device consists of a Gilbert cell mixer, two stages of LO buffering, local oscillator, exte...

  • UPC2781GR

    UPC2781GR

    The UPC2781GR is a Silicon MMIC IQ demodulator manufactured with the NESAT III™ silicon bipolar process. The IC consists of an AGC amplifier, double balanced mixers, oscillator, 90° phase shifter, and I&Q output buffer amps. The device was specific...

  • UPC2776TB-E3-A

    UPC2776TB-E3-A

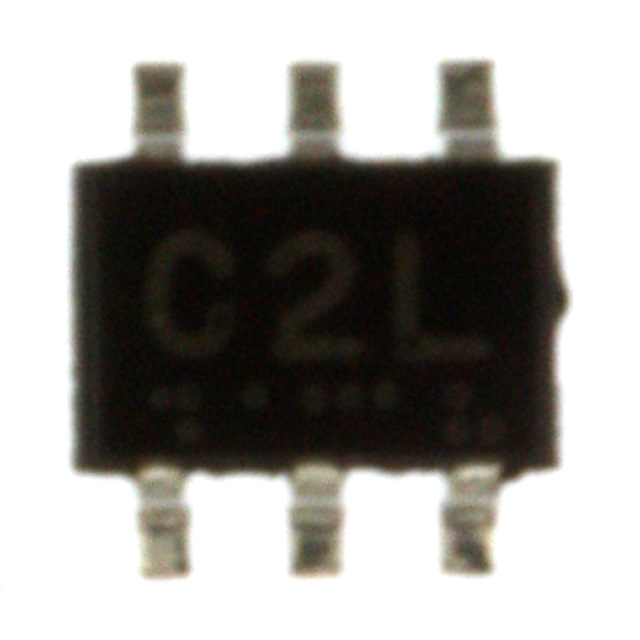

    MMIC AMP 2.7GHZ SOT 363
