Part Number: UPC2900









Description: The µPC2900 series of low dropout voltage three terminal positive regulators is constructed with PNP output trans...


Urgent Purchase

UPC2900 General Description


The µPC2900 series of low dropout voltage three terminal positive regulators is constructed with PNP output transistor.  The µPC2900 series feature the ability to source 1 A of output current with a low dropout voltage of typically 0.7 V.
The power dissipation of the µPC2900 series can be drastically reduced compared with the conventional three terminal positive voltage regulators that is constructed with NPN output transistor.  Also, this series corresponds to the low voltage output (3 V, 3.3 V) which is not in the conventional low dropout regulators (µPC2400A series).

UPC2900 Maximum Ratings

Parameter
Symbol
Rating
Unit
µPC2900HF
µPC2900HB, µPC2900T
Input Voltage
VIN
20
v
Internal Power DissipationNote
PT
15
10
W
Operating Ambient Temperature
TA
30 to +85
°C
Operating Junction Temperature
TJ
30 to +150
°C
Storage Temperature
Tstg
55 to +150
°C
Thermal Resistance (Junction to Case)
Rth (J-C)
7
12.5
°C/W
Thermal Resistance (Junction to Ambient)
Rth (J-A)
65
125
°C/W

UPC2900 Features

• Output current in excess of 1.0 A
• Low dropout voltage  VDIF = 0.7 V TYP. (at IO = 1 A)
• On-chip overcurrent and thermal protection circuit
• On-chip output transistor safe area protection circuit

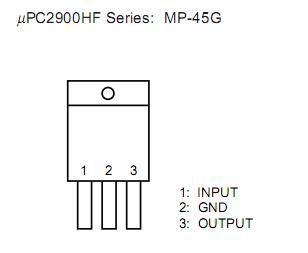

UPC2900 Connection Diagram

UPC2900 Connection DiagramUPC2900 Connection Diagram
