Part Number: UPC3225TB









Description: The PC3225TB is a silicon germanium (SiGe) monolithic integrated circuits de...


Urgent Purchase

UPC3225TB General Description


The PC3225TB is a silicon germanium (SiGe) monolithic integrated circuits designed as IF amplifier for DBS tuners. This IC is manufactured using our 50 GHz fmax UHS2 (Ultra High Speed Process) SiGe bipolar process.

UPC3225TB Maximum Ratings

Parameter
Symbol
Conditions
Ratings
Unit
Supply Voltage
VCC
TA = +25 Pin 1 and 3
6
V
Total Circuit Current
ICC
TA = +25
45
mA
Power Dissipation
PD
TA = +85 Note
270
mW
Operating Ambient Temperature
TA
-40 to +85
Storage Temperature
Tstg

-55 to +150
Input Power
Pin
 TA = +25
0
dBm
Note Mounted on double-sided copper-clad 50 50 1.6 mm epoxy glass PWB

UPC3225TB Features

• Wideband response : fu = 2.8 GHz TYP. @ 3 dB bandwidth
• Low current                               : ICC = 24.5 mA TYP.
• Medium output power               : PO (sat) = +15.5 dBm TYP. @ f = 0.95GHz
                                                    : PO (sat) = +12.5 dBm TYP. @ f = 2.15 GHz
• High linearity                             : PO (1dB) = +9.0 dBm TYP. @ f = 0.95 GHz
                                                    : PO (1dB) = +7.0 dBm TYP. @ f = 2.15 GHz
• Power gain                               : GP = 32.5 dB TYP. @ f = 0.95 GHz
                                                    : GP = 33.5 dB TYP. @ f = 2.15 GHz
• Noise Figure                              : NF = 3.7 dB TYP. @ f = 0.95 GHz
                                                    : NF = 3.7 dB TYP. @ f = 2.15 GHz
• Supply voltage                          : VCC = 4.5 to 5.5 V
• Port impedance                         : input/output 50

UPC3225TB Typical Application

• IF amplifiers in LNB for DBS converters etc.

UPC3225TB Connection Diagram

UPC3225TB Connection Diagram

UPC3225TB datasheet

UPC1028H
PDF/DataSheet Download

Find UPC3225TB Suppliers

  • ·UPC1042
  • NEC [NEC]
  • SWITCHING REGULATOR CONTROL CIRCUIT
  • 255177 KB
  • UPC1042 Datasheet Download
  • ·UPC1060
  • NEC [NEC]
  • 2.5 V HIGH PRECISION REFERENCE VOLTAGE CIRCUIT
  • 54686 KB
  • UPC1060 Datasheet Download
  • ·UPC1060C
  • NEC [NEC]
  • 2.5 V HIGH PRECISION REFERENCE VOLTAGE CIRCUIT
  • 54686 KB
  • UPC1060C Datasheet Download
  • ·UPC1093
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093 Datasheet Download
  • ·UPC1093G
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093G Datasheet Download
  • ·UPC1093J
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093J Datasheet Download
  • ·UPC1093T
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093T Datasheet Download
  • ·UPC1093TA
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093TA Datasheet Download

Related Part Number

UPC3225TB Relative Products

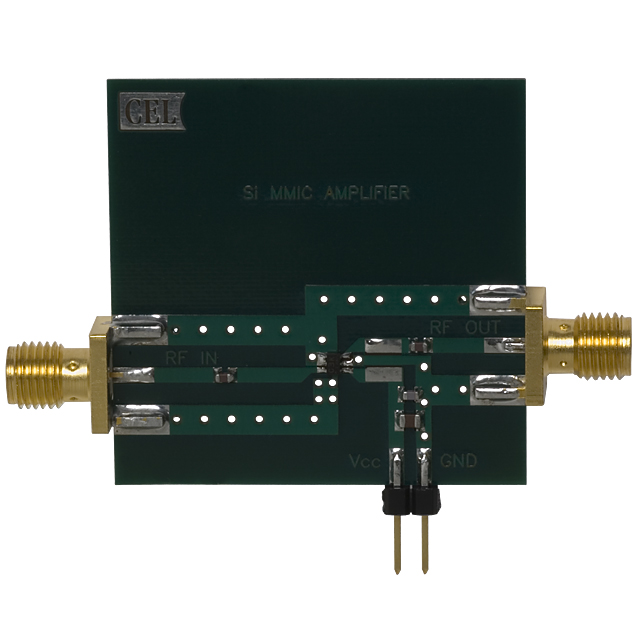

  • UPC3224TB-EVAL
