Part Number: UPD4416016









Description: The mPD4416016 is a high speed, low power, 16,777,216 bits (1,048,576 words by 16 bits) CMOS static RAM.Operating s...


Urgent Purchase

UPD4416016 General Description


The mPD4416016 is a high speed, low power, 16,777,216 bits (1,048,576 words by 16 bits) CMOS static RAM.
Operating supply voltage is 3.3 V ± 0.3 V.
The mPD4416016 is packaged in a 54-pin plastic TSOP (II).

UPD4416016 Maximum Ratings

Parameter
SYMBOL
Condition
Rating
Unit
Supply voltage
VCC
0.5 Note to +4.0
V
Input / Output voltage
VT
0.5 Note to +4.0
V
Operating ambient temperature
TA
0 to 70
°C
Storage temperature
Tstg
55 to +125 °
°C

UPD4416016 Features

· 1,048,576 words by 16 bits organization
· Fast access time : 15, 17 ns (MAX.)
· Byte data control : /LB (I/O1 - I/O8), /UB (I/O9 - I/O16)
· Output Enable input for easy application

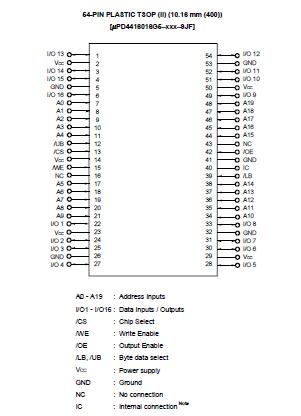

UPD4416016 Connection Diagram

UPD4416016 Connection Diagram

UPD4416016 datasheet

UPD4416016G5-A15-9JF
PDF/DataSheet Download
