Part Number: UPD442012A-X
Description: ThePD442012A-X is a high speed, low power, 2,097,152 bits (131,072 words by 16 bits) CM...
- Table of contents:
UPD442012A-X
-
Suppliers
DataSheet
General Description
UPD442012A-X General Description
The PD442012A-X is a high speed, low power, 2,097,152 bits (131,072 words by 16 bits) CMOS static RAM.
The PD442012A-X has two chip enable pins (/CE1, CE2) to extend the capacity.
The PD442012A-X is packed in 48-pin PLASTIC TSOP (I) (Normal bent).
UPD442012A-X Maximum Ratings
| Parameter | Symbol | Product | Rating | Unit |
| Supply voltage | VCC | PD442012AGY-BBxxX,PD442012AGY-BCxxX | -0.5note to +4.0 | V |
| PD442012AGY-DDxxX | -0.5note to +2.7 | |||
| Input / Output voltage | VT | PD442012AGY-BBxxX,PD442012AGY-BCxxX | -0.5note to VCC+4.0(4.0V MAX.) | V |
| PD442012AGY-DDxxX | -0.5note to VCC+4.0(2.7V MAX.) | |||
| Operating ambient temperature | TA | -25 to +85 | ||
| Storage temperature | Tstg | -55 to +125 |
UPD442012A-X Features
131,072 words by 16 bits organization
Fast access time : 50, 55, 70, 85, 100, 120 ns (MAX.)
Byte data control : /LB (I/O1 - I/O8), /UB (I/O9 - I/O16)
Low voltage operation
(BB version : VCC = 2.7 to 3.6 V, BC version : VCC = 2.2 to 3.6 V, DD version : VCC = 1.8 to 2.2 V)
Low VCC data retention : 1.0 V (MIN.)
Operating ambient temperature : TA = -25 to +85
Output Enable input for easy application
Two Chip Enable inputs : /CE1, CE2
Fast access time : 50, 55, 70, 85, 100, 120 ns (MAX.)
Byte data control : /LB (I/O1 - I/O8), /UB (I/O9 - I/O16)
Low voltage operation
(BB version : VCC = 2.7 to 3.6 V, BC version : VCC = 2.2 to 3.6 V, DD version : VCC = 1.8 to 2.2 V)
Low VCC data retention : 1.0 V (MIN.)
Operating ambient temperature : TA = -25 to +85
Output Enable input for easy application
Two Chip Enable inputs : /CE1, CE2

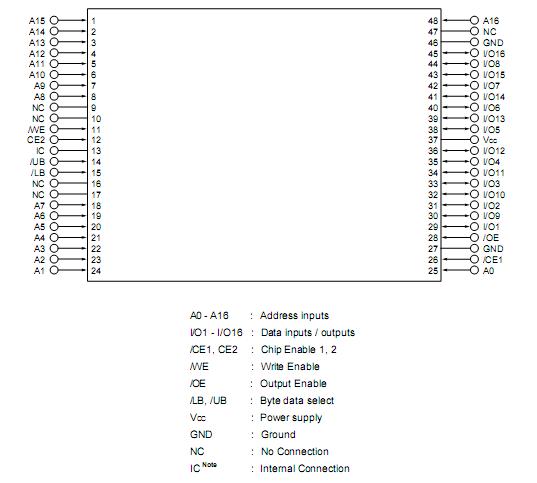

UPD442012A-X Connection Diagram
