Product Details

Description



Features:

• 4,194,304 words by 1 bit organization
• Fast access time : 10, 11, 12 ns (MAX.)
• Output Enable input for easy application
• Single +5.0 V power supply


Pinout

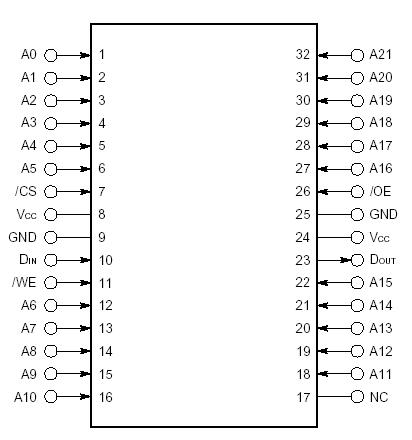

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Supply voltage VCC   0.5 Note to +7.0 V
Input / Output voltage VT   0.5 Note to VCC+0.5 V
Operating ambient temperature TA   0 to 70
Storage temperature Tstg   55 to +125



Description

The UPD444001 is a high speed, low power, 4,194,304 bits (4,194,304 words by 1 bit) CMOS static RAM. Operating supply voltage is 5.0 V ± 0.5 V.

The UPD444001 is packaged in 32-pin PLASTIC SOJ.
