Part Number: UPD444004
Description: The µPD444004 is a high speed, low power, 4,194,304 bits (1,048,576 words by 4 bits) CMOS static...
- Table of contents:
UPD444004
-
Suppliers
DataSheet
General Description
UPD444004 General Description
The µPD444004 is a high speed, low power, 4,194,304 bits (1,048,576 words by 4 bits) CMOS static RAM. Operating supply voltage is 5.0 V ± 0.5 V.
The µPD444004 is packaged in a 32-pin PLASTIC SOJ.
UPD444004 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Supply voltage | VCC | 0.5 Note to +7.0 | V | |
| Input / Output voltage | VT | 0.5 Note to VCC+0.5 | V | |
| Operating ambient temperature | TA | 0 to 70 | ||
| Storage temperature | Tstg | 55 to +125 |
UPD444004 Features
• 1,048,576 words by 4 bits organization
• Fast access time : 8, 10, 12 ns (MAX.)
• Output Enable input for easy application
• Single +5.0 V power supply
• Fast access time : 8, 10, 12 ns (MAX.)
• Output Enable input for easy application
• Single +5.0 V power supply

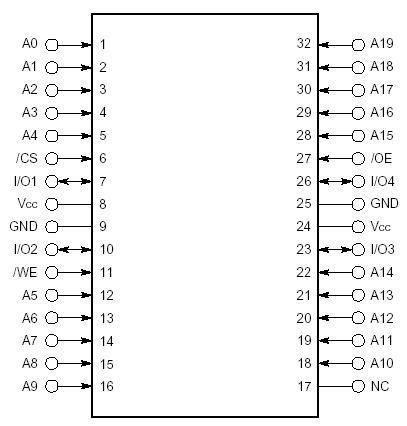

UPD444004 Connection Diagram
UPD444004LE-10
