Part Number: UPD444004L









Description: The µPD444004L is a high speed, low power, 4,194,304 bits (1,048,576 words by 4 bits) CMOS static RAM. Operating ...


Urgent Purchase

UPD444004L General Description


The µPD444004L is a high speed, low power, 4,194,304 bits (1,048,576 words by 4 bits) CMOS static RAM. Operating supply voltage is 3.3 V ± 0.3 V.
The µPD444004L is packaged in a 32-pin PLASTIC SOJ.

UPD444004L Maximum Ratings

Parameter
Symbol
Condition
Rating
Unit
Supply voltage
VCC

0.5 Note to +4.0
V
Input / Output voltage
VT

0.5 Noteto +4.0
V
Operating ambient temperature
TA

0 to 70
°C
Storage temperature
Tst

55 to +125
°C

UPD444004L Features

• 1,048,576 words by 4 bits organization
• Fast access time : 8, 10, 12 ns (MAX.)
• Output Enable input for easy application
• Single +3.3 V power supply

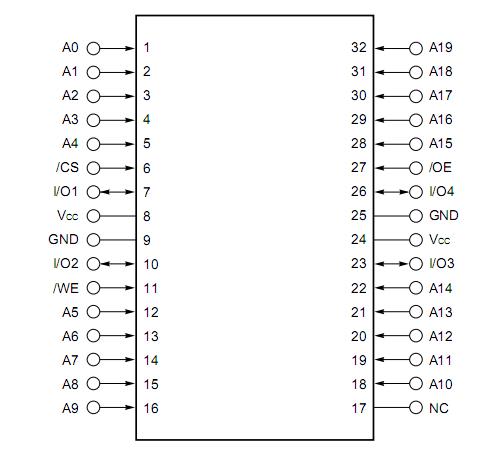

UPD444004L Connection Diagram

UPD444004L Connection Diagram

UPD444004L datasheet

UPD444004LE-10
PDF/DataSheet Download
