Part Number: UPD444012A-X
Description: The PD444012A-X is a high speed, low power, 4,194,304 bits (262,144 words by 16 bits) CMOS st...
- Table of contents:
UPD444012A-X
-
Suppliers
DataSheet
General Description
UPD444012A-X General Description
The PD444012A-X is a high speed, low power, 4,194,304 bits (262,144 words by 16 bits) CMOS static RAM.
The PD444012A-X has two chip enable pins (/CE1, CE2) to extend the capacity.
The PD444012A-X is packed in 48-pin PLASTIC TSOP (I) (Normal bent).
UPD444012A-X Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Unit |
|
Supply voltage |
VCC |
|
-0.5note to +4.0 |
V |
|
Input / Output voltage |
VT |
|
-0.5note to VCC +4.0 ( 4.0V MAX.) |
V |
|
Operating ambient temperature |
TA |
|
-25 to +85 |
|
|
Storage temperature |
Tstg |
|
-55 to +125 |
|
UPD444012A-X Features
262,144 words by 16 bits organization
Fast access time: 50, 55, 70, 85, 100, 120 ns (MAX.)
Byte data control: /LB (I/O1 - I/O8), /UB (I/O9 - I/O16)
Low voltage operation
(B version: VCC = 2.7 to 3.6 V, C version: VCC = 2.2 to 3.6 V)
Low VCC data retention: 1.0 V (MIN.)
Operating ambient temperature: TA = -25 to +85
Output Enable input for easy application
Two Chip Enable inputs: /CE1, CE2
Fast access time: 50, 55, 70, 85, 100, 120 ns (MAX.)
Byte data control: /LB (I/O1 - I/O8), /UB (I/O9 - I/O16)
Low voltage operation
(B version: VCC = 2.7 to 3.6 V, C version: VCC = 2.2 to 3.6 V)
Low VCC data retention: 1.0 V (MIN.)
Operating ambient temperature: TA = -25 to +85
Output Enable input for easy application
Two Chip Enable inputs: /CE1, CE2

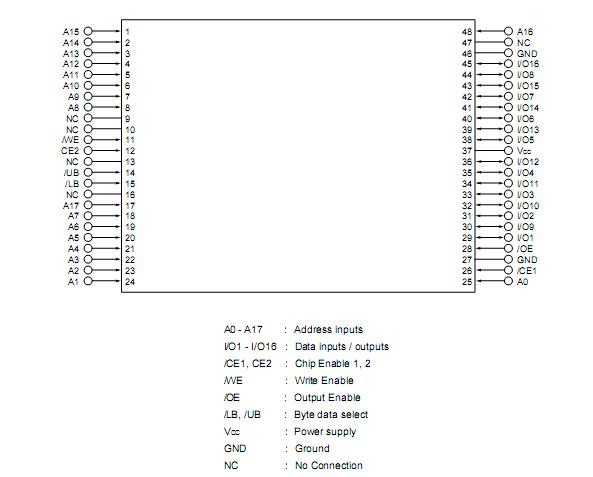

UPD444012A-X Connection Diagram
