Part Number: UPD444016
Description: The UPD444016 is a high speed, low power, 4,194,304 bits (262,144 words by 16 bits) CMOS static RAM. O...
- Table of contents:
UPD444016
-
Suppliers
DataSheet
General Description
UPD444016 General Description
The UPD444016 is a high speed, low power, 4,194,304 bits (262,144 words by 16 bits) CMOS static RAM. Operating supply voltage is 5.0 V ± 0.5 V.
The UPD444016 is packaged in 44-pin plastic SOJ and 44-pin plastic TSOP (II).
UPD444016 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Supply voltage | VCC | 0.5 Note to +7.0 | V | |
| Input / Output voltage | VT | 0.5 Note to VCC+0.5 | V | |
| Operating ambient temperature | TA | 0 to 70 | ||
| Storage temperature | Tstg | 55 to +125 |
UPD444016 Features
· 262,144 words by 16 bits organization
· Fast access time : 8, 10, 12 ns (MAX.)
· Byte data control : /LB (I/O1 - I/O8), /UB (I/O9 - I/O16)
· Output Enable input for easy application
· Single +5.0 V power supply

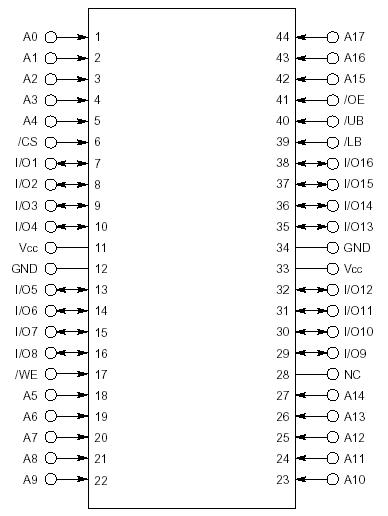

UPD444016 Connection Diagram
UPD444016G5-10-7JF
