UPD4990AG

Features: • Built-in counters for time (hour, minute, and second) and date (year, month, day, and week)• Leap years are adjusted automatically.• Data is represented in BCD notation (except months in hexadecimal notation) and input/output serially.• Commands can be set by in...

product image

UPD4990AG Picture
See larger image
SeekIC No. : 004538173 Detail

UPD4990AG: Features: • Built-in counters for time (hour, minute, and second) and date (year, month, day, and week)• Leap years are adjusted automatically.• Data is represented in BCD notation...

UPD4990AG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPD4990AG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in counters for time (hour, minute, and second) and date (year, month, day, and week)
• Leap years are adjusted automatically.
• Data is represented in BCD notation (except months in hexadecimal notation) and input/output serially.
• Commands can be set by inputting serial data.
• Selective timing pulses (TPs) are 64 Hz, 256 Hz, 2 048 Hz, and 4 096 Hz and selective output intervals are 1, 10,30, and 60 seconds.


Pinout

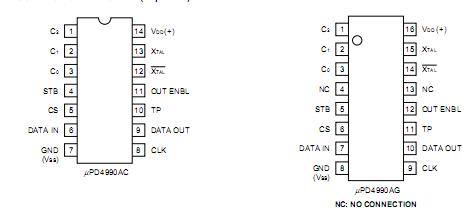

Connection Diagram


Specifications

Supply Voltage

VDD − VSS

−0.5 to 7.0

V

Input Voltage

VIN

VSS −0.3 to VDD +0.3

V

Operating Temperature Range

Topt

−40 to +85

°C

Storage Temperature Range

Tstg

−65 to +125

°C

Output Terminal Voltage

VOUT

−0.5 to 7.0

V




Description

The µPD4990A is a CMOS LSI developed to input/output calendar & clock data serially to/from the micro computer.
The crystal frequency is 32.768 kHz and the data items included are time, minute, second, year, month, day, andweek.
