General Description
UPD65A General Description
Equipped with low-voltage 2.0 V operation, a carrier generation circuit for infrared remote control transmission,a standby release function through key entry, and a programmable timer, the mPD64A and 65 are suitable for infrared remote control transmitters.
For the UPD64A and 65, we have made available the one-time PROM product mPD6P5 (under development)for program evaluation or small-quantity production.
UPD65A Features
• Program memory (ROM)
• uPD64A : 1002 ´ 10 bits
• uPD65 : 2026 ´ 10 bits
• Data memory (RAM) : 32* 4 bits
• Built-in carrier generation circuit for infrared remote control
• 9-bit programmable timer : 1 channel
• Command execution time : 16 us (when operating at fX = 4 MHz: ceramic oscillation)
• Stack level : 1 level (Stack RAM is for data memory RF as well.)
• I/O pins (KI/O) : 8 units
• Input pins (KI) : 4 units
• Sense input pin (S0, S2) : 2 units
• S1/LED pin (I/O) : 1 unit (When in output mode, this is the remote control transmission displaypin.)
• Power supply voltage : VDD = 2.0 to 3.6 V
• Operating ambient temperature : TA = 40 to +85
• Oscillator frequency : fX = 2.4 to 8 MHz
• POC circuit
• uPD64A : 1002 ´ 10 bits
• uPD65 : 2026 ´ 10 bits
• Data memory (RAM) : 32* 4 bits
• Built-in carrier generation circuit for infrared remote control
• 9-bit programmable timer : 1 channel
• Command execution time : 16 us (when operating at fX = 4 MHz: ceramic oscillation)
• Stack level : 1 level (Stack RAM is for data memory RF as well.)
• I/O pins (KI/O) : 8 units
• Input pins (KI) : 4 units
• Sense input pin (S0, S2) : 2 units
• S1/LED pin (I/O) : 1 unit (When in output mode, this is the remote control transmission displaypin.)
• Power supply voltage : VDD = 2.0 to 3.6 V
• Operating ambient temperature : TA = 40 to +85
• Oscillator frequency : fX = 2.4 to 8 MHz
• POC circuit
UPD65A Typical Application
Infrared remote control transmitter (for AV and household electric appliances)

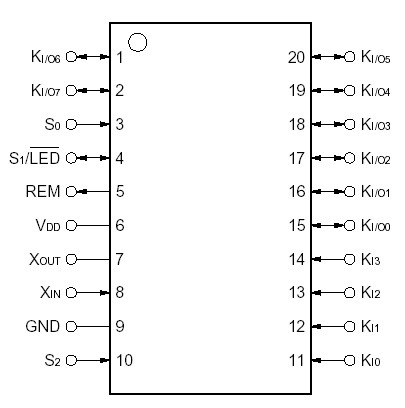

UPD65A Connection Diagram
