Description: The PD6124A and 6600A are 4-bit single-chip microcontrollers for infrared remote controllers for TVs, VCRs...
- Table of contents:
UPD6600A
-
Suppliers
DataSheet
General Description
UPD6600A General Description
The PD6124A and 6600A are 4-bit single-chip microcontrollers for infrared remote controllers for TVs, VCRs, stereos, cassette decks, air conditions, etc.
These microcontrollers consist of ROM, RAM, a 4-bit parallel-processing ALU, a programmable timer, key input/ output ports, and transmit output ports. Functioning is controlled by a program.
A one-time PROM, model PD6124, to which a program can be written only once is also available. This one-time PROM is ideal for evaluation of programs running in a PD6124A or 6600A, and for small-scale production of such systems.

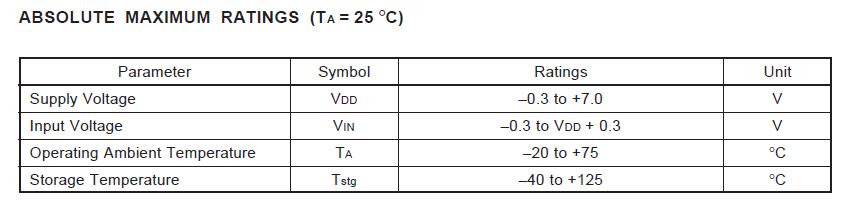

UPD6600A Maximum Ratings
Caution: Even if one of the parameters exceeds its absolute maximum rating even momentarily, the quality of the product may be degraded. The absolute maximum rating therefore specifies the upper or lower
limit of the value at which the product can be used without physical damages. Be sure to use the product(s) within the ratings.
UPD6600A Features
• Transmitter for programmable infrared remote controller
• 19 types of instructions
• Instruction execution time: 17.6 ms (with 455-kHz ceramic
resonator)
• Program memory (ROM) capacity
• mPD6124A: 1002 ´ 10 bits
• mPD6600A: 512 ´ 10 bits
• Data memory (RAM) capacity: 32 ´ 5 bits
• 9-bit programmable timer: 1 channel
• I/O pins (KI/O): 8 pins
• Input pins (KI): 4 pins
• Serial input pins (S-IN): 1 pin
• Transmission-in-progress indication pin (S-OUT): 1
pin
• Transmit carrier frequency (REM)
fOSC/12, fOSC/8
• Standby operation (HALT/STOP mode)
• Low power consumption
• Current consumption in STOP mode (TA = 25°C)
• Low-voltage operation
mPD6124A: VDD = 2.2 to 5.5 V
mPD6600A: VDD = 2.2 to 3.6 V
• 19 types of instructions
• Instruction execution time: 17.6 ms (with 455-kHz ceramic
resonator)
• Program memory (ROM) capacity
• mPD6124A: 1002 ´ 10 bits
• mPD6600A: 512 ´ 10 bits
• Data memory (RAM) capacity: 32 ´ 5 bits
• 9-bit programmable timer: 1 channel
• I/O pins (KI/O): 8 pins
• Input pins (KI): 4 pins
• Serial input pins (S-IN): 1 pin
• Transmission-in-progress indication pin (S-OUT): 1
pin
• Transmit carrier frequency (REM)
fOSC/12, fOSC/8
• Standby operation (HALT/STOP mode)
• Low power consumption
• Current consumption in STOP mode (TA = 25°C)
• Low-voltage operation
mPD6124A: VDD = 2.2 to 5.5 V
mPD6600A: VDD = 2.2 to 3.6 V
UPD6600A Connection Diagram
UPD6600AGS
PDF/DataSheet Download
- Datasheet: UPD6600AGS
- File Size: 176815 KB
- Manufacturer: NEC [NEC]
- Click here to Download
