General Description
UPD703014A General Description
The UPD703014A, 703014AY, 703015A, 703015AY, 703017A, and 703017AY (V850/SA1) are 32-/16-bit singlechip microcontrollers that include the CPU core of the V850 FamilyTM, and peripheral functions such as ROM/RAM, timer/counters, serial interfaces, an A/D converter, a timer, and a DMA controller.
In addition to its high real-time responsiveness and one-clock-pitch execution of instructions, the V850/SA1 includes a hardware multiplier for multiplication instructions, saturation instructions, and bit manipulation instructions, all of which are instructions suited to digital servo control applications. As a real-time control system, this device provides a high-level cost performance ideal for applications ranging from low-power camcorders and other AV equipment to portable telephone equipment such as cellular phones and personal handyphone systems (PHS).
Detailed function descriptions are provided in the following user's manuals. Be sure to read them before designing.
V850/SA1 User's Manual Hardware: U12768E
V850 FamilyTMUser's Manual Architecture: U10243E
UPD703014A Features
Number of instructions: 74
Minimum instruction execution time:
59 ns (@ 17 MHz operation with main system clock (fXX))
50 ns (@ 20 MHz operation with main system clock (fXX))
30.5 ms (@ 32.768 kHz operation with subsystem clock (fXT))
General-purpose registers: 32 bits ´ 32 registers
Instruction set:
Signed multiplication, saturation operations, 32-bit
shift instructions, bit manipulation instructions,
load/store instructions
Memory space:
16 MB linear address space
Memory block allocation function: 2 MB per block
External bus interface: 16-bit data bus
Address bus: Separate output enabled
Internal memory
Mask ROM: 64 KB (mPD703014A, 703014AY)
128 KB (mPD703015A, 703015AY)
256 KB (mPD703017A, 703017AY)
RAM: 4 KB
(mPD703014A, 703014AY, 703015A, 703015AY)
8 KB (mPD703017A, 703017AY)
Interrupts and exception
External: 8, internal: 23, exception: 1
I/O lines Total: 85
Timer/counters
16-bit timer: 2 channels
8-bit timer: 4 channels
Watch timer: 1 channel
Watchdog timer: 1 channel
Serial interface (SIO)
Asynchronous serial interface (UART)
Clocked serial interface (CSI)
12C bus interface
(UPD703014AY, 703015AY, 703017AY)
A/D converter: 12 channels
DMA controller: 3 channels
RTP: 8 bits ´ 1 channel or 4 bits ´ 2 channels
Power-saving functions: HALT/IDLE/STOP modes
Packages: 100-pin plastic LQFP (14 ´ 14)
121-pin plastic FBGA (12 ´ 12)
Minimum instruction execution time:
59 ns (@ 17 MHz operation with main system clock (fXX))
50 ns (@ 20 MHz operation with main system clock (fXX))
30.5 ms (@ 32.768 kHz operation with subsystem clock (fXT))
General-purpose registers: 32 bits ´ 32 registers
Instruction set:
Signed multiplication, saturation operations, 32-bit
shift instructions, bit manipulation instructions,
load/store instructions
Memory space:
16 MB linear address space
Memory block allocation function: 2 MB per block
External bus interface: 16-bit data bus
Address bus: Separate output enabled
Internal memory
Mask ROM: 64 KB (mPD703014A, 703014AY)
128 KB (mPD703015A, 703015AY)
256 KB (mPD703017A, 703017AY)
RAM: 4 KB
(mPD703014A, 703014AY, 703015A, 703015AY)
8 KB (mPD703017A, 703017AY)
Interrupts and exception
External: 8, internal: 23, exception: 1
I/O lines Total: 85
Timer/counters
16-bit timer: 2 channels
8-bit timer: 4 channels
Watch timer: 1 channel
Watchdog timer: 1 channel
Serial interface (SIO)
Asynchronous serial interface (UART)
Clocked serial interface (CSI)
12C bus interface
(UPD703014AY, 703015AY, 703017AY)
A/D converter: 12 channels
DMA controller: 3 channels
RTP: 8 bits ´ 1 channel or 4 bits ´ 2 channels
Power-saving functions: HALT/IDLE/STOP modes
Packages: 100-pin plastic LQFP (14 ´ 14)
121-pin plastic FBGA (12 ´ 12)
UPD703014A Typical Application
Low-power portable devices
Cellular phones, PHSs, and camcorders
Cellular phones, PHSs, and camcorders

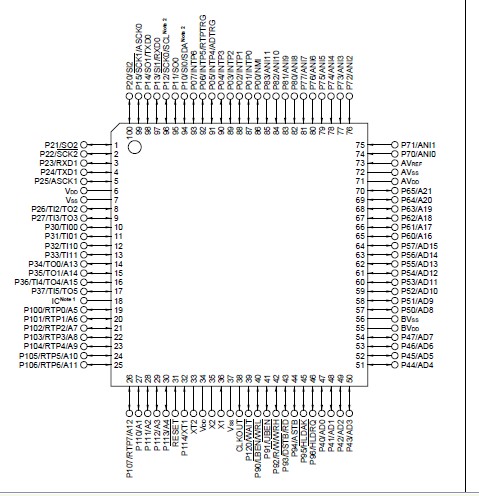

UPD703014A Connection Diagram
