MFG:nec Package Cooled:nec D/C:dc91
MFG: nec
Package Cooled: nec
D/C: dc91
Description: The µPD75216A is a microcomputer with a CPU capable of 1-, 4-, and 8-bit data processing, ROM, R...
The µPD75216A is a microcomputer with a CPU capable of 1-, 4-, and 8-bit data processing, ROM, RAM, I/O ports,a fluorescent display tube controller/driver, a watch timer, a timer/pulse generator capable of outputting 14-bit PWM,a serial interface and a vectored interrupt function integrated on a single-chip.
The µPD75216A is a product with the ROM capacity and the number of display segments extended for theµPD75208.
It uses the VCR, ECR and CD fluorescent display tubes as display devices and is most suitable for applications requiring the timer/watch function and high-speed interrupt servicing. It can help to provide the unit with many functions and to decrease performance costs.

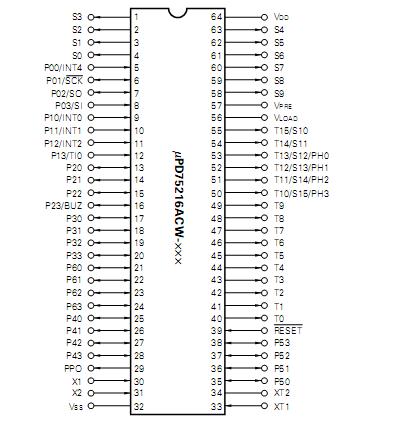

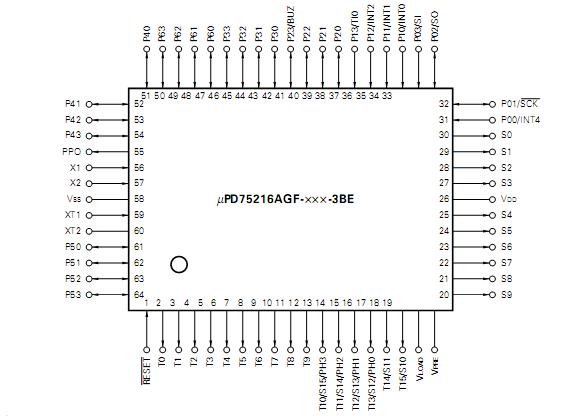

| PARAMETER | SYMBOL | TEST CONDITIONS | RATING | UNIT |
| Power supply voltage | VDD | 0.3 to +7.0 | V | |
| VLOAD | VDD40 to VDD+0.3 | V | ||
| VPRE | VDD12 to VDD+0.3 | V | ||
| Input voltage | VI | 0.3 to VDD +0.3 | V | |
| Output voltage | VO | Pins except display output pins | 0.3 to VDD+0.3 | V |
| VOD | Display output pins | VDD40 to VDD+0.3 | V | |
| Output current high | IOH | 1 pin except display output pins | 15 | mA |
| S0 to S91 pin | -15 | mA | ||
| T0 to T151 pin | -30 | mA | ||
| Total of pins except display output pins | -20 | mA | ||
| Total of display output pins | -120 | mA | ||
| Output current low | Iol | 1 pin | 17 | mA |
| Total of pins | 60 | mA | ||
| Total loss | PT | Plastic QFP | 450 | mW |
| Plastic shrink DIP | 600 | mW | ||
| Operating temperature | TOPT | 40 to +85 | ||
| Storage temperature | TSTG | 65 to +150 |
• Architecture equal to that of an 8-bit microcomputer
• High-speed operation : Minimum instruction execution time : 0.95 µs (when operated at 4.19 MHz)
• Instruction execution time variable function realizing a wide range of operating voltages
• On-chip large-capacity program memory : 16K bytes
• Watch operation with an ultra low current consumption : 5µA TYP. (at the 3 V operation)
• On-chip programmable fluorescent display tube controller/driver
• Timer function : 4 ch
• 14-bit PWM output capability with the voltage synthesizer type electronic tuner
• Buzzer output capability
• Interrupt function with importance attached to applications
• For power-off detection
• For remote controlled reception
• Product with an on-chip PROM : µPD75P216A, µPD75P218 (on-chip EPROM : WQFN package)
UPD75216AGF
PDF/DataSheet Download
