Part Number: UPD753012A

MFG: NEC

Package Cooled: QFP80

Description: The µPD753017A is one of the 75XL series 4-bit single-chip microcontroller chips and has a data processing

UPD753012A General Description

^{The µPD753017A is one of the 75XL series 4-bit single-chip microcontroller chips and has a data processing
capability comparable to that of an 8-bit microcontroller.
It has an on-chip LCD controller/driver with a larger ROM capacity and extended CPU functions compared with
the conventional µPD75316B, and can provide high-speed operation at a low supply voltage of 1.8 V. It can be
supplied in a small plastic TQFP package (12 × 12 mm) and is suitable for small sets using LCD panels.}

UPD753012A Features

^{Low voltage operation: VDD = 1.8 to 5.5 V
Can be driven by two 1.5 V batteries
On-chip memory` Program memory (ROM):
   12288 * 8 bits (µPD753012A)
   16384 * 8 bits (µPD753016A)
   24576 * 8 bits (µPD753017A)
Data memory (RAM):}
^{1024 * 4 bits
Capable of high-speed operation and variable instructionexecution time for power saving
0.95, 1.91, 3.81, 15.3 µs (at 4.19 MHz operation)
0.67, 1.33, 2.67, 10.7 µs (at 6.0 MHz operation)
122 µs (at 32.768 kHz operation)
Internal programmable LCD controller/driver
Small plastic TQFP (12 * 12 mm)
Suitable for small sets such as cameras
One-time PROM: µPD75P3018A}

UPD753012A Typical Application

Remote controllers, camera-integrated VCRs, cameras, gas meters, etc.

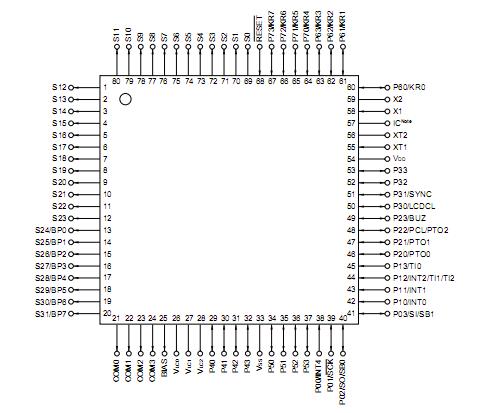

UPD753012A Connection Diagram
