Part Number: UPD75312B
Description: The PD75316B is a 75X Series 4-bit single-chip microcomputer capable of the same data processing as an...
- Table of contents:
UPD75312B
-
Suppliers
DataSheet
General Description
UPD75312B General Description
The PD75316B is a 75X Series 4-bit single-chip microcomputer capable of the same data processing as an 8- bit microcomputer.
It is a low-voltage operation version of the PD75316 with an on-chip LCD controller/driver. Operation at an ultra- low voltage of 2.0 V is possible. An ultra small-sized plastic TQFP (12 x 12 mm) is also provided and it is suitable for small-sized sets that use an LCD panel.
UPD75312B Features
Ultra-low-voltage operation possible: VDD = 2.0 to 6.0 V * Instruction execution time adjustment function
Can be driven by two 1.5-V manganese batteries.
convenient in high-speed operation and power
On-chip memory saving
Program memory (ROM) * 0.95 s, 1.91 s, 15.3 s (@ 4.19 MHz)
: 16256 * 8 bits (PD75316B)
122 s (@ 32.768 kHz)
: 12160 * 8 bits (PD75312B)
On-chip programmable LCD controller/driver
Data memory (RAM)
LCD drive voltage: 2.0 V to VDD
: 1024 * 4 bits
Ultra small-sized plastic TQFP (12 x 12 mm)
Suitable for small-sized set, such as a camera.
PROM version PD75P316B also available.
Can be driven by two 1.5-V manganese batteries.
convenient in high-speed operation and power
On-chip memory saving
Program memory (ROM) * 0.95 s, 1.91 s, 15.3 s (@ 4.19 MHz)
: 16256 * 8 bits (PD75316B)
122 s (@ 32.768 kHz)
: 12160 * 8 bits (PD75312B)
On-chip programmable LCD controller/driver
Data memory (RAM)
LCD drive voltage: 2.0 V to VDD
: 1024 * 4 bits
Ultra small-sized plastic TQFP (12 x 12 mm)
Suitable for small-sized set, such as a camera.
PROM version PD75P316B also available.
UPD75312B Typical Application
Remote control, camcorder, camera, gas meter, etc.

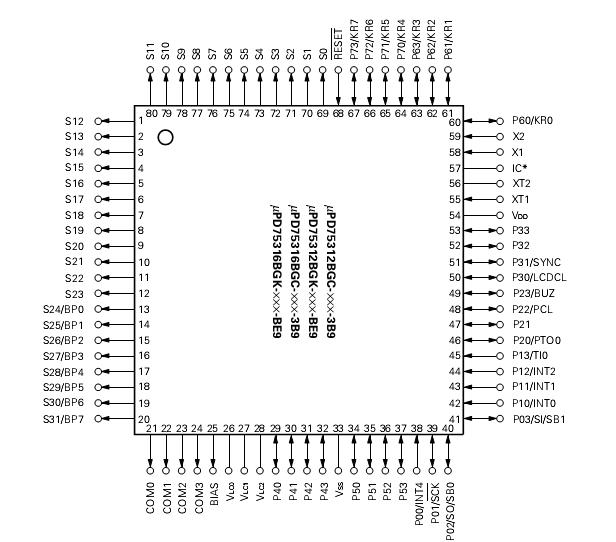

UPD75312B Connection Diagram
