Part Number: UPD75512GFA_1089604
Description: The mPD75512(A) is a 4-bit single-chip microcomputer which employs 75X series architecture, and its er...
- Table of contents:
UPD75512GFA_1089604
-
Suppliers
DataSheet
General Description
UPD75512GFA_1089604 General Description
The mPD75512(A) is a 4-bit single-chip microcomputer which employs 75X series architecture, and its erformance is comparable to that of an 8-bit microcomputer.
In addition to its high-speed processing capabilities, the mPD75512(A) is also capable of processing data in nits of 1, 4, or in 8-bits. With its internally provided A/D converter and serial interface, the mPD75512(A) provides he highest performance in its class.
UPD75512GFA_1089604 Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit | |
| Supply Voltage |
VDD |
-0.3 to +7.0 |
V | ||
| Input Voltage |
VI1 |
Other than ports 4, 5, 12-14 |
-0.3 to VDD +0.3 |
V | |
|
VI2 |
VI2 Ports 4, 5, 12-14 | w/pull-upresistor |
-0.3to VDD + 0.3 |
V | |
| Open drain |
-0.3 to +11 |
V | |||
| Output Voltage |
VO |
-0.3 to VDD +0.3 |
V | ||
| High-Level Output Current |
IOH* |
Ports 4, 5, 12-14 | Peak |
-10 |
mA |
| rms |
-5 |
mA | |||
| All pins | Peak |
-30 |
mA | ||
| rms |
-15 |
mA | |||
| Low-Level Output Current |
IOL* |
1 pin | Peak |
10 |
mA |
| rms |
5 |
mA | |||
| Total of ports 0, 2, 3, 4 | Peak |
100 |
mA | ||
| rms |
60 |
mA | |||
| Total of ports 5-11 | Peak |
100 |
mA | ||
| rms |
60 |
mA | |||
| Total of ports 12-14 | Peak |
40 |
|||
| rms |
25 |
mA | |||
| Operating Temperature |
Topt |
-40 to +85 |
°C | ||
| Storage Temperature |
Tstg |
-65 to +150 |
°C | ||
UPD75512GFA_1089604 Features
• Higher reliability than mPD75512
• Adequate I/O lines: 64 can be provided with pull-up/pull-down resistors: 47) Built-in 8-bit serial interface: 2-ch EC standard serial bus interface (SBI) internally provided
• Built-in 8-bit A/D converter: 8-ch
• Variable instruction execution time function which is convenient for high-speed operation and power saving
· 0.95 ms/1.95 ms/15.3 ms (at 4.19 MHz operation),
· 122 ms (at 32.768 kHz operation)
• Program memory (ROM) size: 12,160 ´ 8 bits
• Data memory (RAM) size: 512 ´ 4 bits
• High-performance timer function: 4-ch
· 8-bit timer/event counter
· Watch timer
· 8-bit basic interval timer
· Timer/pulse generator: Capable of outputting 14-bit PWM
• Clock operation for reduced power consumption possible 5 mA TYP. at 3 V operation)
• PROM version (mPD75P516) available
UPD75512GFA_1089604 Typical Application
·Switable for automotive and transportation equipments, etc.

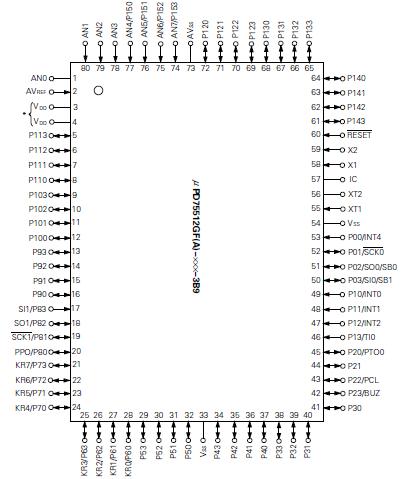

UPD75512GFA_1089604 Connection Diagram
