Part Number: UPD75517GF_1068195
Description: The mPD75517(A) is a 75X series four-bit single-chip microcomputer which enables data processing quiva...
- Table of contents:
UPD75517GF_1068195
-
Suppliers
DataSheet
General Description
UPD75517GF_1068195 General Description
The mPD75517(A) is a 75X series four-bit single-chip microcomputer which enables data processing quivalent to that performed by an eight-bit microcomputer. It is a high-performance product, whose inimum instruction execution time is 0.67 ms, shorter than 0.95 ms for the conventional mPD75516. The ROM nd RAM capacities are also larger, and the throughput of the 75X series is further increased. The mPD75517(A) s suited to controllers of electric parts of automobiles.
UPD75517GF_1068195 Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit | |
| Supply Voltage |
VDD |
-0.3 to +7.0 |
V | ||
| Input Voltage |
VI1 |
Other than ports 4, 5, 12-14 |
-0.3 to VDD +0.3 |
V | |
|
VI2 |
VI2 Ports 4, 5, 12-14 | w/pull-upresistor |
-0.3to VDD + 0.3 |
V | |
| Open drain |
-0.3 to +11 |
V | |||
| Output Voltage |
VO |
-0.3 to VDD +0.3 |
V | ||
| High-Level Output Current |
IOH* |
Ports 4, 5, 12-14 | Peak |
-10 |
mA |
| rms |
-5 |
mA | |||
| All pins | Peak |
-30 |
mA | ||
| rms |
-15 |
mA | |||
| Low-Level Output Current |
IOL* |
1 pin | Peak |
10 |
mA |
| rms |
5 |
mA | |||
| Total of ports 0, 2, 3, 4 | Peak |
100 |
mA | ||
| rms |
60 |
mA | |||
| Total of ports 5-11 | Peak |
100 |
mA | ||
| rms |
60 |
mA | |||
| Total of ports 12-14 | Peak |
40 |
|||
| rms |
25 |
mA | |||
| Operating Temperature |
Topt |
-40 to +85 |
°C | ||
| Storage Temperature |
Tstg |
-65 to +150 |
°C | ||
UPD75517GF_1068195 Features
• Higher reliable than the mPD75517
• Capacities of program memory, ROM: 24448 ´ 8 bits
• Capacity of data memory, RAM: 1024 ´ 4 bits
• Function for specifying the instruction execution time (useful for high-speed operation and saving power)
• 0.67 ms/1.33 ms/2.67 ms/10.7 ms (when the main system clock operates at 6.0 MHz)
• 0.95 ms/1.91 ms/3.82 ms/15.3 ms (when the main system clock operates at 4.19 MHz)
• 122 ms (when the subsystem clock operates at 32.768 kHz)
• Built-in A/D converter operable on low voltage
• 8-bit resolution ´ 8 channels (Successive approximation system)
• VDD = 2.7 to 6.0 V
• Many I/O lines: 64
• Enhanced timer function: 4 channels
• Built-in 8-bit serial interface: Two channels
• Built-in NEC serial bus interface (SBI)
• Clock operable with ultra-low power consumption (when 5-mA TYP. operates on 3 V.)
• Product with a built-in PROM available: mPD75P518
• Capacities of program memory, ROM: 24448 ´ 8 bits
• Capacity of data memory, RAM: 1024 ´ 4 bits
• Function for specifying the instruction execution time (useful for high-speed operation and saving power)
• 0.67 ms/1.33 ms/2.67 ms/10.7 ms (when the main system clock operates at 6.0 MHz)
• 0.95 ms/1.91 ms/3.82 ms/15.3 ms (when the main system clock operates at 4.19 MHz)
• 122 ms (when the subsystem clock operates at 32.768 kHz)
• Built-in A/D converter operable on low voltage
• 8-bit resolution ´ 8 channels (Successive approximation system)
• VDD = 2.7 to 6.0 V
• Many I/O lines: 64
• Enhanced timer function: 4 channels
• Built-in 8-bit serial interface: Two channels
• Built-in NEC serial bus interface (SBI)
• Clock operable with ultra-low power consumption (when 5-mA TYP. operates on 3 V.)
• Product with a built-in PROM available: mPD75P518
UPD75517GF_1068195 Typical Application
·Controller of electric parts of automobiles

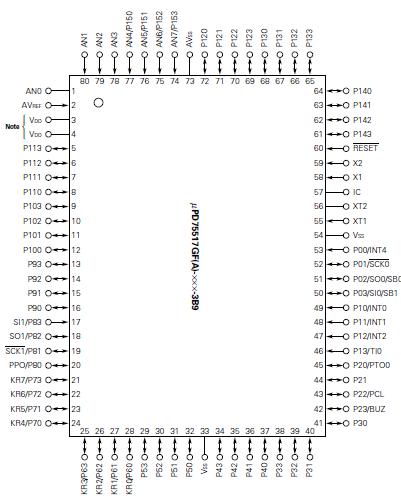

UPD75517GF_1068195 Connection Diagram
