Features:

· Abundant 159 types of instructions : 87AD series instruction set, multiplication/division instructions,
    16-bit operation instructions
· Instruction cycle : 0.8 ms (at 15 MHz operation)
· On-chip ROM : 4096W ´ 8 ( mPD78C11A), 8192W ´ 8 ( mPD78C12A)
    Non ( mPD78C10A)
· On-chip RAM : 256W ´ 8
· High-precision 8-bit A/D converter : 8 analog inputs
· General-purpose serial interface : Asynchronous, synchronous, I/O interface mode
· Multi-function 16-bit timer/event counter
· Two 8-bit timers
· I/O lines : 32 ( mPD78C10A), 44 ( mPD78C11A, 78C12A)
· Interrupt function (external - 3, internal - 8) : Non-maskable interrupt ´ 1, maskable interrupt ´ 10
· Standby function : HALT mode, hardware/software STOP mode
· Zero-cross detection function : (2 inputs)
· On-chip pull-up resistor (port A, B, C: mPD78C11A, 78C12A only) by mask option



Pinout

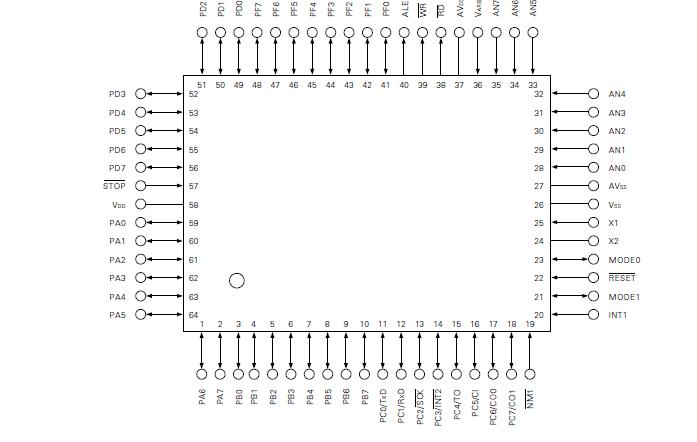

  Connection Diagram


Description

   The mPD78C11A is a CMOS 8-bit microprocessor which can integrate 16-bit ALU, ROM, RAM, an A/D converter, a multi-function timer/event counter, and a general-purpose serial interface into a single chip, then expand the memory (ROM/RAM) up to 60K bytes externally. The mPD78C10A is a ROM-less product of the mPD78C11A, and can directly address the external memory up to 64k bytes. The mPD78C12A is a product which has more built-in ROM capacity than the mPD78C11A, and its memory (ROM/RAM) can be externally extended up to 56K bytes. The mPD78C10A, mPD78C11A, and mPD78C12A operated at low power consumption, because they have a CMOS construction. Also, they can hold data with low power consumption by using standby function.
   On-chip PROM products, mPD78CP14 and mPD78CP18 which are ideal for evaluation or preproduction use during
system development, early start-up and short-run multiple-device production of application sets, are available.
