UR7HCPXZ-S440

Features: • Interfaces the system via serial port, making it ideal for non-PC systems• Accurate No-DriftTM cursor control via Semtech's advanced algorithm• Interfaces strain gauge miniature joysticks with Z-Axis functionality, such as those from CTS• Implements the Tap (s...

product image

UR7HCPXZ-S440 Picture
See larger image
SeekIC No. : 004538507 Detail

UR7HCPXZ-S440: Features: • Interfaces the system via serial port, making it ideal for non-PC systems• Accurate No-DriftTM cursor control via Semtech's advanced algorithm• Interfaces strain gauge ...

UR7HCPXZ-S440 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UR7HCPXZ-S440
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Interfaces the system via serial port, making it ideal for non-PC systems
• Accurate No-DriftTM cursor control via Semtech's advanced algorithm
• Interfaces strain gauge "miniature joysticks" with Z-Axis functionality, such as those from CTS
• Implements the Tap (select), Double Tap (execute) and Press Hold (drag) in firmware no special serial drivers required
• EasyDragTM feature reduces the speed of the cursor during drag, making it easier to handle
• Offers CleanStopTM so cursor stops when you want it to
• Supports Scrolling (MouseWheel)
• Low-power consumption of typically less than 3mA makes it ideal for battery-operated systems
• Operates at 3-5V in extended temperature range
• Uses small 32-pin 7mm X 7mm LQFP package
• Inexpensive, turn-key solution
• Utilizes sophisticated, patented signal conditioning circuit requiring less than 15 components
• Customized versions available


Application

• Handhelds/Notebooks
• Smart Phones
• Internet appliances
• Instrumentation

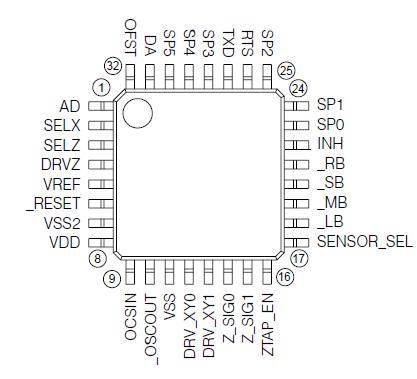

Pinout

Connection Diagram


Specifications

Ratings
Symbol
Value
Unit
Supply Voltage
Vdd
-0.3 to 7.0
V
Input Voltage
All input pins
Vin
Vss -0.3 to Vdd +0.3
V
Current Drain per Pin
(not including Vss or Vdd)
I
20
mA
Operating Temperature
UR7HCPXZ-S440
Ta
T low to T high
-20 to +85
° C
° C
Storage Temperature Range
Tstg
-40 to +125
° C



Description

The PixiPointTM Z UR7HCPXZ-S440 Serial mouse encoder is a cost-effective, highfunctionality IC for strain gauge "miniature joysticks" with Z-axis functionality, such as the CTS series 106, 108 & 109. Ideal for portable and other systems that need to interface a mouse to a serial port, the low-power (typically less than 3mA) PixiPointTM Z offers an advanced algorithm for enhanced motion control.

The IC UR7HCPXZ-S440 implements the Tap (select) and Double Tap (execute) and Press Hold (drag) functions in firmware. No special drivers are needed to access these "Z" functions. Other special features of UR7HCPXZ-S440 provided by the IC include CleanStopTM, which allows the cursor to stop exactly when you want it to and EasyDragTM, which reduces the speed of the cursor during drag, making it easier to handle.
