US2026A

Features: ` Two P-channel power MOSFET control switch` 110A Max operating current` 5A Max standby current` 145 m Max switch resistance` 2.7V ~ 5.5V input voltage range` 500mA minimum continuous load current` Smooth turn-on eliminates in-rush induced voltage drop` 1 ms fault flag delay filters Hot-...

product image

US2026A Picture
See larger image
SeekIC No. : 004538615 Detail

US2026A: Features: ` Two P-channel power MOSFET control switch` 110A Max operating current` 5A Max standby current` 145 m Max switch resistance` 2.7V ~ 5.5V input voltage range` 500mA minimum continuous load...

US2026A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
US2026A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Two P-channel power MOSFET control switch
` 110A Max operating current
` 5A Max standby current
` 145 m Max switch resistance
` 2.7V ~ 5.5V input voltage range
` 500mA minimum continuous load current
` Smooth turn-on eliminates in-rush induced voltage drop
` 1 ms fault flag delay filters Hot-Plug events
` Over-current protection
` Under-voltage lockout circuit
` Thermal shutdown protection
` Flag indicates fault conditions


Pinout

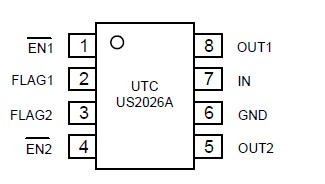

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
Supply Voltage
VIN
-0.3 ~ +6
V
Output Voltage
VOUT
-0.3 ~ +6
V
Voltage at All Other Pins
V OTHER
-0.3 ~ +6
V
Total Power Dissipation
PD
300
mW
Junction Temperature
TJ
+150
Operating Temperature
TOPR
-40 ~ +85
Storage Temperature
TSTG
-55 ~ +150

Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.




Description

The UTC US2026A is a standard dual channels power switch with independent over-current protection fault flag functions, optimized for bus-powered Universal Serial Bus (USB) and self-powered applications, including Notebook and desktop PC's that supply power to more than one port.

The UTC US2026A also offers thermal shutdown protection that reduces current consumption in fault modes for each switch and the entire device. With a 1ms delay on the fault FLAG output prevents erroneous over current reporting caused by in-rush currents during hot-plug events.

In addition, the UTC US2026A employs soft-start circuitry that minimizes in-rush current in applications where highly capacitive loads are employed.
