Features:

` Provides support for digital rights management for portable devices (PD-DRM) via Mass Storage Class SCSI Inquiry command as specified by Microsoft for Windows Media Systems (WM-DRM). Reports all media as Removable (HDDs only).
` 2.5 Volt, Low Power Core Operation
` 3.3 Volt I/O with 5V input tolerance
` Supports a low-cost single 3.3V regulator design, by using a 1N4001 diode to provide the 2.5V core voltage (from the 3.3V supply)
` Complete USB Specification 2.0 Compatibility
- Includes USB2.0 Transceiver
- A Bi-directional Control and a Bi-directional Bulk Endpoint are provided.
` Complete System Solution for interfacing ATA or ATAPI devices to USB2.0 bus
- Supports USB Mass Storage Compliant Bootable BIOS
- Supports ATA6 Drive capacities up to 2048GB
- True UDMA Mode 4 transfer rates
- Support for ATAPI Devices:
CD-ROM
CD-R
CD-RW
DVD
DVD/R/W
` Support for sharing ATA/ATAPI drive with external microprocessor for file playback in portable media player applications
- Pin indication of USB bus SUSPEND state
- Control pin to force drive interface high impedance state for drive sharing
` 8051 8 bit microprocessor
- Provides low speed control functions
- 30 Mhz execution speed at 4 cycles per instruction average
- 768 Bytes of internal SRAM for general purpose scratchpad or program execution while re-flashing external ROM
` Double Buffered Bulk Endpoint
- Bi-directional 512 Byte Buffer for Bulk Endpoint
- 64 Byte RX Control Endpoint Buffer
- 64 Byte TX Control Endpoint Buffer
` Internal or External Program Memory Interface
- 48K Byte Internal ROM or optional 64K Byte External Code Space using Flash, SRAM, or EPROM Memory
` On Board 12Mhz Crystal Driver Circuit
` Internal PLL for 480Mhz USB2.0 Sampling, 30Mhz MCU clock, and 60Mhz ATA clock
` Supports firmware upgrade via USB bus if "boot block" Flash program memory is used for optional external program memory
` Optional Serial EEPROM interface for VID/PID/Serial Number Customization
` 100STQFP Package (12x12x1.4mm body, 14x14mm footprint); green, lead-free package also available


Pinout

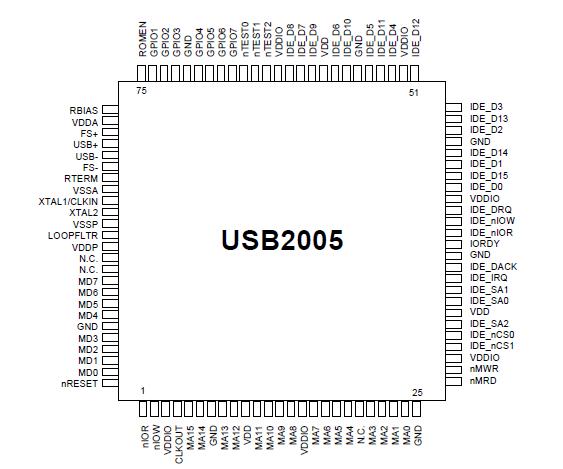

Connection Diagram


Specifications

Operating Temperature Range ................................................. 0oC to +70oC
Storage Temperature Range...................................................-55o to +150oC
Lead Temperature Range (soldering, 10 seconds) ............................ +325oC
Positive Voltage on any pin, with respect to Ground.................................5.5V
Negative Voltage on any pin, with respect to Ground .............................-0.3V
Maximum VDDA, VDDIO...........................................................................+4.0V
Maximum VDD, VDDP...............................................................................+3.0V


Description

The USB2005 is a USB2.0 Mass Storage Class Peripheral Controller intended for use with standard ATA-5 and -6 hard in media player applications requiring Portable Device Digital Rights Management (PD-DRM) as specified by Microsoft for Windows Media systems. This includes reporting all media as removable drives and providing the drive serial number to the PC host via a SCSI Inquiry command.
The USB2005 consists of a USB2.0 PHY and SIE, buffers, Fast 8051 microprocessor with expanded scratchpad and 768 of program SRAM, internal 48 KB program ROM, and an ATA-66 compatible interface.
Provisions for optional external Flash Memory up to 64K bytes for program storage is provided. An optional serial EEPROM which can be modified via USB from the host provides unique VID/PID/Serial numbers, as well as optional configuration information.
Internal 768 Bytes of scratchpad SRAM are also provided. The USB2005 can also be used for program storage to implement program upgrade via USB download to external "boot block" Flash program memory, if desired.
