USB97C201

Features: ` 2.5 Volt, Low Power Core Operation` 3.3 Volt I/O with 5V input tolerance` Complete USB Specification 2.0 Compatibility- Includes USB 2.0 Transceiver- A Bi-directional Control, a Bi-directional Interrupt, and a Bi-directional Bulk Endpoint are provided.` Complete System Solution for int...

product image

USB97C201 Picture
See larger image
SeekIC No. : 004538816 Detail

USB97C201: Features: ` 2.5 Volt, Low Power Core Operation` 3.3 Volt I/O with 5V input tolerance` Complete USB Specification 2.0 Compatibility- Includes USB 2.0 Transceiver- A Bi-directional Control, a Bi-direc...

USB97C201 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
USB97C201
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2.5 Volt, Low Power Core Operation
` 3.3 Volt I/O with 5V input tolerance
` Complete USB Specification 2.0 Compatibility
- Includes USB 2.0 Transceiver
- A Bi-directional Control, a Bi-directional Interrupt, and a Bi-directional Bulk Endpoint are provided.
` Complete System Solution for interfacing ATA or ATAPI devices to USB 2.0 bus
- Supports USB Mass Storage Compliant Bootable BIOS
- Support for ATAPI Devices:
- CD-ROM
- CD-R
- CD-RW
- DVD
- DVD/R/W
` 8051 8 bit microprocessor
- Provides low speed control functions
- 30 Mhz execution speed at 4 cycles per instruction average
- 768 Bytes of internal SRAM for generalpurpose scratchpad or program execution while re-flashing external ROM
` Double Buffered Bulk Endpoint
- Bi-directional 512 Byte Buffer for Bulk Endpoint
- 64 Byte RX Control Endpoint Buffer
- 64 Byte TX Control Endpoint Buffer
- 64 Byte TX Interrupt Endpoint Buffer
- 64 Byte RX Interrupt Endpoint Buffer
` External Program Memory Interface
- 64K Byte Code Space
- Flash, SRAM, or EPROM Memory
` On Board 12Mhz Crystal Driver Circuit
` Internal PLL for 480Mhz USB2.0 Sampling, 30Mhz MCU clock, and 60Mhz ATA clock
` Supports firmware upgrade via USB bus if "boot block" Flash program memory is used
` 8 GPIOs for special function use : LED indicators, button inputs, etc.
- Inputs capable of generating interrupts with either edge sensitivity
- One GPIO has automatic ½ sec toggle capability for flashing an LED indicator.
` 100 Pin TQFP Package (14.0 x 14.0 mm footprint)
- 25% smaller body size than other 100 pin TQFP Packages
` 100 Pin QFP Package


Pinout

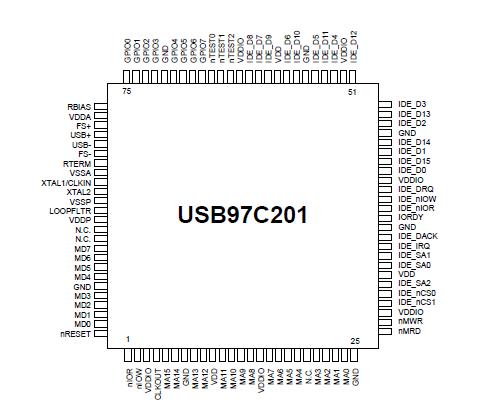

Connection Diagram


Specifications

Operating Temperature Range....................................................... 0oC to +70oC
Storage Temperature Range .......................................................-55o to +150oC
Lead Temperature Range (soldering, 10 seconds)..................................................................................................+325oC
Positive Voltage on any pin, with respect to Ground.................................... 5.5V
Negative Voltage on any pin, with respect to Ground .................................-0.3V
Maximum VDDA, VDDIO ....................................................................... ...... +3.0V
Maximum VDD, VDDP .............................................    ................................. +4.0V


Description

The USB97C201 is a USB2.0 Mass Storage Class Peripheral Controller intended for use with standard ATA hard drives and standard ATAPI-5 devices.
The USB97C201 and 768 of program SRAM, and an ATA-66 compatible interface. Provisions for external Flash Memory up to 64K bytes for program storage is provided. Internal 768 Bytes of program SRAM are also provided.. This internal SRAM is used for program storage to implement program upgrade via USB download to "boot block" Flash program memory, if desired. Eight GPIO pins are provided for controlling external power control elements and sensing specialized drive functions. Provisions are made to allow dynamic attach and re-attach to the USB bus to allow hot swap of drives to be implemented.
