UT51C164

Features: `RAS access time: 35, 40, 50, 60` 2CAS Byte/Word Read/Write operation` CAS - before RAS refresh capability` RAS only and Hidden refresh capability` Early write or output enable controlled write` Extended Data Out operation` Package : 40 pin 400mil SOJ 40 / 44 pin 400mil TSOP-` Single +5V...

product image

UT51C164 Picture
See larger image
SeekIC No. : 004539056 Detail

UT51C164: Features: `RAS access time: 35, 40, 50, 60` 2CAS Byte/Word Read/Write operation` CAS - before RAS refresh capability` RAS only and Hidden refresh capability` Early write or output enable controlled ...

UT51C164 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UT51C164
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` RAS access time: 35, 40, 50, 60
` 2 CAS Byte/Word Read/Write operation
` CAS - before RAS refresh capability
` RAS only and Hidden refresh capability
` Early write or output enable controlled write
` Extended Data Out operation
` Package : 40 pin 400mil SOJ 40 / 44 pin 400mil TSOP-
` Single +5V+10% power supply
` TTL compatible inputs and outputs
` 512 refresh cycles /8ms


Pinout

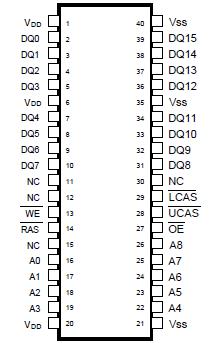

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNIT
Voltage on any pin relative to Vss
VT
-1.0 to +7
V
Supply voltage relative to VSS
VDD
-1.0 to +7
V
Short circuit output current
IOUT
50
mA
Power dissipation
PD
1.0
W
Operating temperature
TA
0 to + 70
ºC
Storage temperature
TSTG
-55 to +125
ºC
Notes: Permanent device damage may occur if absolute maximum ratings are exceed.


Description

The UT51C164 is high speed 5V EDO DRAMs organized as 256K bit X 16 I/O and fabricated with the CMOS process. The UT51C164 offers a combination of unique features including : EDO Page Mode operation for higher bandwidth with Page Mode cycle time as short as 14ns. All inputs are
TTL compatible. Input and output capacitance is significantly lowered to increase performance and minimize loading. These features make the UT51C164 suited for wide variety of high performance computer systems and peripheral applications.
