Product Details

Description



Features:

*Wide operating supply voltage:Vcc=1.8V- 12V
*Low crossover distortion
*Low quiescent circuit current
*bridge/stereo configuration

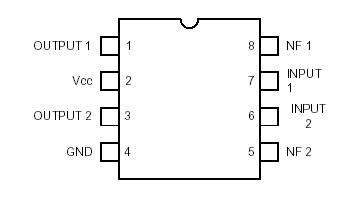

Pinout

Connection Diagram


Specifications

Characteristic Symbol Value Unit
Supply Voltage VCC 15 V
Output Peak Current IO(peak) 1 A
Power Dissipation PD at Tamb=50°C 1.0
at Tcase=50°C 1.4		 W
Operating Temperature Topr -20~+70 °C
Storage Temperature Tstg -40~+150 °C



Description

The UTC2822 is a monolithic integrated audio amplifier in a 8-Pin plastic Dual in line package. It is designed for portable cassette players and radios.
