UTCMC4580

Features: `Operating Voltage (±2V to±18V)`Low Input Noise Voltage(0.8Vrms typ.)`Wide Gain Bandwidth Product(15MHz typ.)`Low Distortion (0.0005% typ.)`Slew Rate (5V/s typ.)`Bipolar TechnologyPinoutSpecifications PARAMETER SYMBOL RATINGS UNIT Supply Voltage V+/V- ±18 V ...

product image

UTCMC4580 Picture
See larger image
SeekIC No. : 004539302 Detail

UTCMC4580: Features: `Operating Voltage (±2V to±18V)`Low Input Noise Voltage(0.8Vrms typ.)`Wide Gain Bandwidth Product(15MHz typ.)`Low Distortion (0.0005% typ.)`Slew Rate (5V/s typ.)`Bipolar TechnologyPinoutS...

UTCMC4580 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UTCMC4580
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Operating Voltage                         (±2V to±18V)
`Low Input Noise Voltage              (0.8Vrms typ.)
`Wide Gain Bandwidth Product        (15MHz typ.)
`Low Distortion                               (0.0005% typ.)
`Slew Rate                                             (5V/s typ.)
`Bipolar Technology

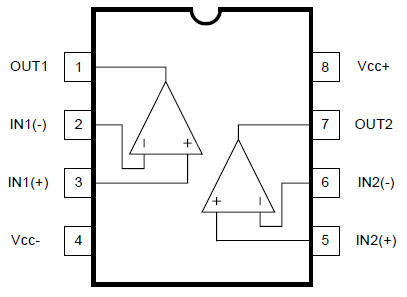

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
Supply Voltage
V+/V-
±18
V
Input Voltage
VIC
±15
V
Differential Input Voltage
VID
±30
V
Output Current
Io
±50
mA
Power Dissipation
PD
300 (SOP-8)
800 (DIP-8)
250(TSSOP-8)
mW
Operating Temperature Range
Topr
-40 to+85
Storage Temperature Range
Tstg
-40 to +125




Description

The UTCMC4580 is the dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application.

Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and the UTCMC4580 is most suitable not only for acoustic electronic parts of audio pre-amp and active filter, but also for the industrial measurement tools. It is also suitable for the head phone amp at higher output current, and further more, it can be applied for the handy type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the input low voltage source.
