`Supply current typically 390 nA at 3 V
`50 ns access time with 50 pF load capacitance
`Fully operational from 1.2 V to 5.5 V
`No busy states or danger of a clock update while accessing
`Serial communication on one line of a standard parallel
`data bus or over a conventional 3 wire serial interface
`Interface compatible with both Intel and Motorola
`Seconds, minutes, hours, day of month, month, year, week
`day and week number in BCD format
`Leap year and week number correction
`Time set lock mode to prevent unauthorized setting of the
`current time or date
`Oscillator stability 0.3 ppm / volt
`No external capacitor needed
`Frequency measurement and test modes
`Temperature range -40 to +85
`TSSO8 and SO8 packages
`On request extended temperature range, -40 to +125
`Pin compatible with the V3021

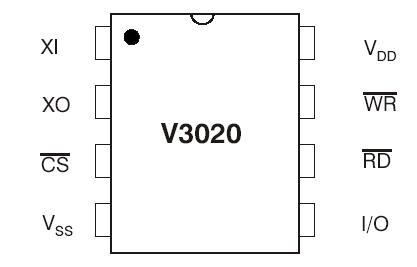

Parameter | Symbol | Conditions |
Maximum voltage at VDD Minimum voltage at VDD Maximum voltage at any signal pin Minimum voltage at any signal pin Maximum storage temperature Minimum storage temperature Electrostatic discharge maximum to MIL-STD-883C method 3015 Maximum soldering conditions |
VDDmax VDDmin Vmax Vmin TSTOmax TSTOmin VSmax TSmax |
VSS + 7.0V VSS- 0.3V VSS - 0.3V VDD+ 0.3V +150 -65 1000V 250 x 10s |
The V3020 is a low power CMOS real time clock. Data is transmitted serially as 4 address bits and 8 data bits, over one line of a standard parallel data bus. The device is accessed by chip select (CS) with read and write control timing provided by either RD and WR pulse (Intel CPU) orDS with advanced R/W (Motorola CPU). Data can also be transmitted over a conventional 3 wire serial interface having CLK, data I/O and strobe. The V3020 has no busy states and there is no danger of a clock update while accessing. Supply current is typically 390 nA at V = 3.0 V. Battery operation is supported by complete DD functionality down to 1.2 V. The oscillator s tability is typically 0.3 ppm/V.
