Features:

• Pin and function compatible with the National DS90CF386, THine THC63LVDF84, TI SN65LVDS94
• Converts 4-pair LVDS data streams into parallel 28 bits of CMOS/TTL data
• Fully spread spectrum compatible
• Wide clock frequency range from 20 MHz to 85 MHz
• Supports VGA, SVGA, XGA, and SXGA
• LVDS voltage swing of 350 mV for low EMI
• On-chip PLL requires no external components
• Low-power CMOS design
• Falling edge clock triggered outputs
• Power-down control function
• Compatible with TIA/EIA-644 LVDS standards
• Packaged in a 56-pin TSSOP (Pb free available)

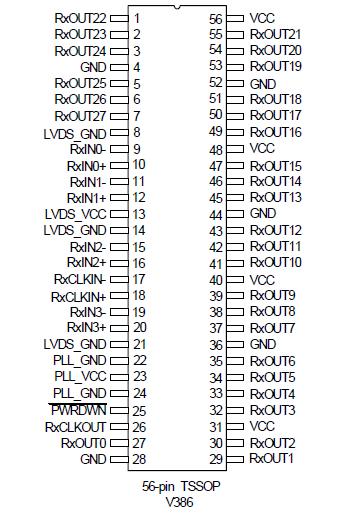

Pinout

Connection Diagram


Specifications

Stresses above the ratings listed below can cause permanent damage to the V386. These ratings, which are standard values for ICS commercially rated parts, are stress ratings only. Functional operation of the device at these or any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods can affect product reliability. Electrical parameters are guaranteed only over the recommended operating temperature range.

Item Rating
Supply Voltage, VCC -0.3 V to +4 V
CMOS/TTL Output Voltage -0.3 V to (VCC+0.3 V)
LVDS Receiver Input Voltage -0.3 V to (VCC+0.3 V)
Ambient Operating Temperature 0 to +70
Storage Temperature -65 to +150
Junction Temperature 150
Soldering Temperature (10 seconds max.) 260
Maximum Package Power 1.61 W (V386)
Package Derating 12.4 mW/ above +25
15 mW/ above +25




Description

The V386 is an ideal LVDS receiver that converts 4-pair LVDS data streams into parallel 28 bits of CMOS/TTL data with bandwidth up to 2.38 Gbps throughput or 297.5 Mbytes per second.

This chip of the V386 is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces through very low-swing LVDS signals.

ICS manufactures a large variety of video application devices. Consult ICS for all of your video application requirements.
