VB921ZVFI

Input Current :
Power Dissipation :
Output Voltage Range :
Output Current :
Packaging : Tube
Operating Temperature Range : - 40 C to + 150 C
Mounting Style : Through Hole
Input Voltage Range : + 4.2 V to + 5.5 V
Package / Case : TO-220FP


Features:

 NO EXTERNAL COMPONENT REQUIRED
INTEGRATED HIGH VOLTAGE CLAMP
COIL CURRENT LIMIT INTERNALLY SET
HIGH RUGGEDNESS

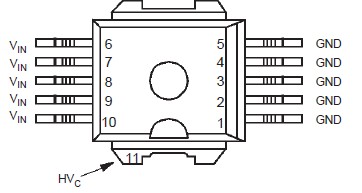

Pinout




Specifications

Symbol	Parameter	Value		Unit
		ISOWATT220	PowerSO-10
HVc	Collector Voltage	Internally limited		V
IC	Collector Current	Internally limited		A
VIN	Maximum Input Voltage	8		V
IIN	Input current	10		mA
Ptot	Total dissipation at TC=25	40	100	W
Tj	Junction operating temperature -	40 to 150
Tstg	Storage temperature	- 40 to 150

Description

The VB921ZVFI, VB921ZVSP is a monolithic high voltage integrated circuit made using the STMicroelectronics VIPower^TM technology, which combines a vertical current flow power trilinton with a coil current limiting circuit and a collector voltage clamping. The VB921ZVFI, VB921ZVSP device is particularly suitable for application in high performance electronic car ignition, where coil current limitation and voltage clamping are required.

Parameters:

Technical/Catalog Information	VB921ZVFI
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	*
Mounting Type	Through Hole
Type	Relay/Load Driver
Voltage - Supply	4.2 V ~ 5.5 V
On-State Resistance	-
Current - Output / Channel	6A
Current - Peak Output	7.5A
Packaging	*
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	VB921ZVFI VB921ZVFI 497 2716 5 ND 49727165ND 497-2716-5
