Product Details

Description



Features:

Low cost, single chip solution for high resolution USB PC camera applications
Support up to 15 fps VGA video streaming
USB Device Controller compliant with USB protocol 1.1
USB parameters configurable through EEPROM
Support 10/9/8-bit RGB Bayer pattern raw data input from CMOS image sensors
Support programmable color correction and gamma correction
Support ISO/IEC 10918-1 (JPEG) standard image compression
Support 4 quantization tables for programmable image quality
Support raw data output for high quality still image
3.3V I/O, 1.8V core
No external DRAM required
 Flexible system level solution support



Pinout

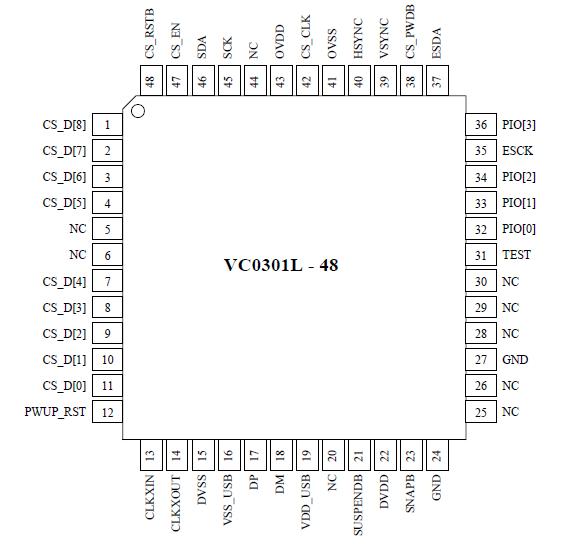

  Connection Diagram


Description

The VC0301L chip provides a cost effective single chip solution for the PC camera application. It communicates with PC host via Universal Serial Bus (USB) port. All major image processing functions including image signal processing (ISP), image compression and data transfer units are built in the chip. VC0301L is designed as a cost-effective single-chip device replacing the complex and costly chip sets used in current PC camera designs with embedded USB device controller and transceiver, 48-LQFP package, and no external DRAM requirement. Advanced on-chip image signal processor and JPEG encoder produce images with superior quality.
