VEC2822

Features: • DC / DC converter.• Composite type with a P-Channel Sillicon MOSFET and a Schottky Barrier Diode contained in one packagefacilitating high-density mounting.[MOSFET]• Low ON-resistance• Ultrahigh-speed switching.• 1.8V drive.[SBD]• Low switching noise...

product image

VEC2822 Picture
See larger image
SeekIC No. : 004541101 Detail

VEC2822: Features: • DC / DC converter.• Composite type with a P-Channel Sillicon MOSFET and a Schottky Barrier Diode contained in one packagefacilitating high-density mounting.[MOSFET]• Lo...

VEC2822 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VEC2822
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DC / DC converter.
• Composite type with a P-Channel Sillicon MOSFET and a Schottky Barrier Diode contained in one package
facilitating high-density mounting.
[MOSFET]
• Low ON-resistance
• Ultrahigh-speed switching.
• 1.8V drive.
[SBD]
• Low switching noise.
• Low leakage current and high reliability due to planar structure.




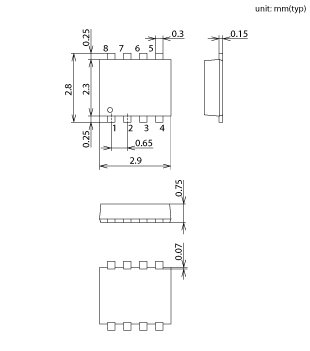

Pinout






Specifications

Absolute maximum ratings
VDSS [V] 20
ID [A] 3.5
PD [W] 1
When mounted on ceramic substrate (1200mm²*0.8mm) 1unit
VRRM [V] 15
IO [A] 2
Electrical characteristics
VGS(off) min to max [V] 0.4 to 1.4
|yfs| typ [S] 5.8
RDS(on)1 typ [] 0.077
RDS(on)1 max [] 0.108
VGS [V] 2.5
ID [A] 1
RDS(on)2 typ [] 0.112
RDS(on)2 max [] 0.168
VGS [V] 1.8
ID [A] 0.3
Ciss [pF] 680
VF max [V] 0.56
IF [A] 2
IR [µA] 30
VR [V] 7.5
trr max [ns] 10
IF=IR [mA] 100


Parameter Symbol Conditions Ratings Unit
[MOSFET]
Drain-to-Source Voltage VDSS -20 V
Gate-to-Source Voltage VGSS ±10 V
Drain Current (DC) ID -3.5 A
Drain Current (Pulse) IDP PW10µs, duty cycle1% -14 A
Allowable Power Dissipation PD Mounted on a ceramic board (1200mm2*0.8mm) 1unit 1.0 W
Channel Temperature Tch 150
Storage Temperature Tstg -55 to +125
[SBD]
Repetitive Peak Reverse Voltage VRRM 15 V
Nonrepetitive Peak Reverse Surge Voltage VRSM 17 V
